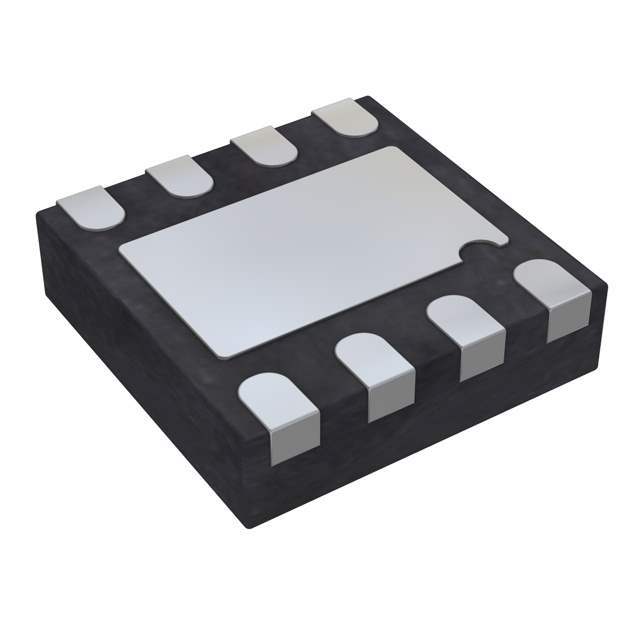

Same model may have multiple batches, images only for reference.
ADL5903SCPZN-R7 Analog Devices Inc.
Same model may have multiple batches, images only for reference.

ADL5903SCPZN-R7

Part No ADL5903SCPZN-R7
Manufacturer Analog Devices Inc.
Catalog RF Detectors
Description RF Detector IC 200MHz ~ 6GHz ±1dB 8-UFDFN Exposed Pad, CSP
Datasheet
ADL5903SCPZN-R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless >RF Detectors
Manufacturer Analog Devices Inc.
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Frequency 200MHz ~ 6GHz
Accuracy ±1dB
Voltage - Supply 3V ~ 5V
Current - Supply 3 mA
Mounting Type Surface Mount
Package / Case 8-UFDFN Exposed Pad, CSP
Ultra Librarian 3D Model Ultra Librarian ADL5903SCPZN-R7 CAD Model

Description

The ADL5903 is a true rms responding power detector that has a 35 dB measurement range. It features low power consumption and an intrinsically ripple-free error transfer function.
