Analog Devices Inc. ADL5246ACPZN-R7 Product Overview

The ADL5246ACPZN-R7 from Analog Devices Inc. is a high-performance, digitally controllable variable gain amplifier (VGA) designed for use in a wide array of RF and IF signal chain applications. This product is engineered to meet the rigorous demands of the modern communication systems where precise gain control, low noise, and linearity are crucial.

With its broad frequency range from 100 MHz to 4000 MHz, the ADL5246ACPZN-R7 is an ideal choice for diverse applications including wireless infrastructure, point-to-point radios, public safety radios, and general-purpose RF and IF amplification tasks. The device's flexibility is further enhanced by its dual amplifier design, which allows for differential or single-ended input and output configurations, providing designers with a versatile tool to address multiple design challenges.

The ADL5246ACPZN-R7 offers a digitally controlled 31.5 dB gain range in 0.5 dB steps, enabling precise gain setting and adjustment without sacrificing performance. This feature is particularly useful for systems that require automatic gain control (AGC) or need to adapt to varying signal levels. The device also boasts an OIP3 (Output Third-Order Intercept Point) of 45 dBm, ensuring excellent linearity and low distortion even at high output power levels.

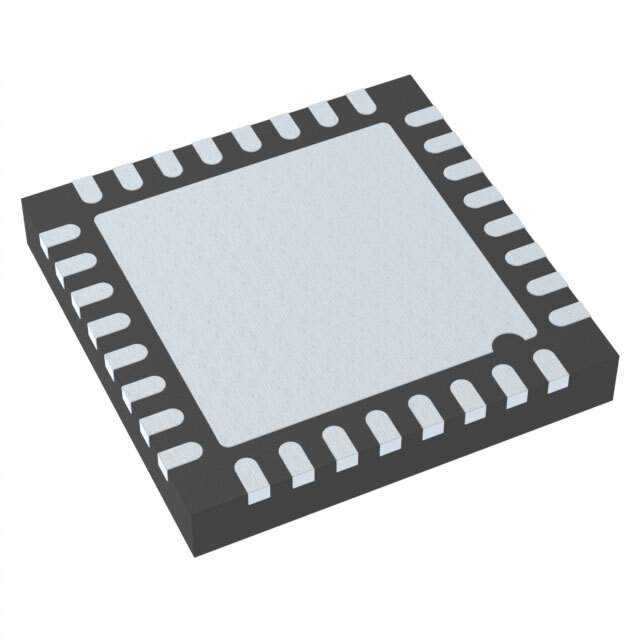

The product is housed in a compact 32-lead LFCSP (Lead Frame Chip Scale Package) with a 5 mm x 5 mm footprint, making it suitable for space-constrained applications. Additionally, its power-down feature reduces power consumption when the device is not in use, contributing to energy-efficient designs.

For ease of integration, the ADL5246ACPZN-R7 is fully specified over a temperature range of -40°C to +85°C, ensuring reliable performance across various environmental conditions. Analog Devices Inc. provides comprehensive technical support, including detailed datasheets, application notes, and design resources, to assist designers in implementing the ADL5246ACPZN-R7 into their projects effectively.

In summary, the ADL5246ACPZN-R7 from Analog Devices Inc. is a robust, versatile, and high-performance VGA that delivers precise gain control and excellent signal integrity, making it an outstanding solution for a multitude of RF and IF amplification needs.
