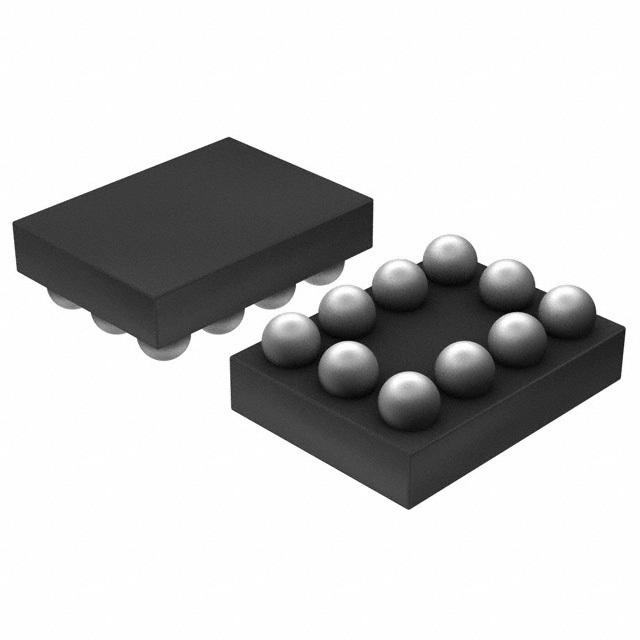

Same model may have multiple batches, images only for reference.
ADG787BCBZ-REEL7 Analog Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ADG787BCBZ-REEL7

Part No ADG787BCBZ-REEL7
Manufacturer Analog Devices Inc.
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH SPDT X 2 3OHM 10WLCSP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Switch Circuit SPDT
Multiplexer/Demultiplexer Circuit 2:1
Number of Circuits 2
On-State Resistance (Max) 3Ohm
Channel-to-Channel Matching (ΔRon) 20mOhm
Voltage - Supply, Single (V+) 1.8V ~ 5.5V
Switch Time (Ton, Toff) (Max) 19ns, 5ns
-3db Bandwidth 145MHz
Charge Injection 14pC
Channel Capacitance (CS(off), CD(off)) 16pF
Current - Leakage (IS(off)) (Max) 50pA (Typ)
Crosstalk -110dB @ 1MHz
Temperature Range - Operating -20°C ~ 85°C (TA)
Mounting Type Surface Mount
Case / Package 10-UFBGA, WLCSP
Supplier Device Package 10-WLCSP (2x1.5)
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1505598-ADG787BCBZ-REEL7
Ultra Librarian 3D Model Ultra Librarian ADG787BCBZ-REEL7 CAD Model
