Product Overview: ADG772BCPZ-REEL7

The ADG772BCPZ-REEL7 is a high-performance CMOS switch fabricated by Analog Devices Inc., a leader in the semiconductor industry. This switch is designed to deliver exceptional signal integrity and reliability for a wide range of applications, including data acquisition systems, communication systems, and medical equipment.

Key Features

• Low On-Resistance: The ADG772BCPZ-REEL7 boasts a low on-resistance (Ron) typically around 1.3 ohms, ensuring minimal signal attenuation and power loss across the switch.
• Single Supply Operation: This device operates from a single 1.8 V to 5.5 V power supply, making it versatile for various systems and simplifying power management.
• 3.6 V Logic Compatible: Inputs are 1.8 V logic compatible when operating from a 3.6 V supply, providing compatibility with low-voltage logic systems.
• Dual SPDT Configuration: The switch features a dual Single Pole Double Throw (SPDT) configuration, allowing for flexible routing of signals within a circuit.
• Fast Switching Times: With t_ON of 0.25 µs and t_OFF of 0.15 µs, the ADG772BCPZ-REEL7 enables rapid signal switching, which is critical in high-speed applications.
• Low Power Consumption: The ultra-low power consumption of this switch makes it ideal for battery-powered and portable devices, where power efficiency is crucial.

Package and Quality

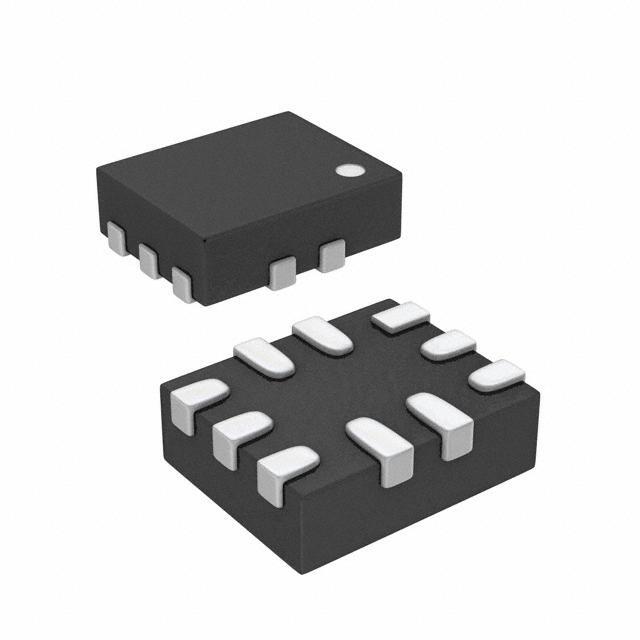

The ADG772BCPZ-REEL7 comes in a compact 10-lead LFCSP (Lead Frame Chip Scale Package) that is designed for space-saving on the PCB. The REEL7 suffix indicates that this product is provided in a tape and reel packaging, suitable for automated assembly processes. Analog Devices Inc. is known for its commitment to quality, and this product is no exception, adhering to stringent industry standards for reliability and performance.

Applications

• Communication Systems
• Data Acquisition Systems
• Audio and Video Switching
• Medical Equipment
• Relay Replacement

In summary, the ADG772BCPZ-REEL7 from Analog Devices Inc. is a highly reliable and efficient CMOS switch that provides designers with a versatile component for their signal routing needs. Its low on-resistance, fast switching times, and compatibility with various supply voltages make it a top choice for engineers looking to optimize their electronic designs.
