The AD624BD is a high precision instrumentation amplifier designed by Analog Devices Inc., tailored for applications requiring accurate, low noise amplification of small differential voltages. This component is widely recognized for its exceptional performance in medical instrumentation, industrial process controls, and precision data acquisition systems.

Key Features:

• Outstanding Linearity: The AD624BD boasts a linearity of 0.001% at G = 100, ensuring high-fidelity signal amplification across a wide range of input values.
• High Gain Accuracy: With a gain accuracy of ±0.10% max (G = 1), this instrumentation amplifier provides precise amplification, minimizing the need for external calibration.
• Low Noise: A low noise figure of 9 nV/√Hz @ 1 kHz at G = 1000 means that the AD624BD is capable of amplifying small signals without significant addition of noise, making it ideal for sensitive applications.
• Wide Gain Range: The device offers a user-selectable gain range from 1 to 10,000, which can be set with a single external resistor, providing flexibility and ease of use in various configurations.
• Low Total Harmonic Distortion: The AD624BD features a total harmonic distortion less than 120 dB, ensuring the integrity of the amplified signal is maintained.

Applications:

• Medical instrumentation such as ECG and EEG monitors
• Strain gage amplifiers
• Industrial process controls
• Precision data acquisition systems
• Transducer interfaces

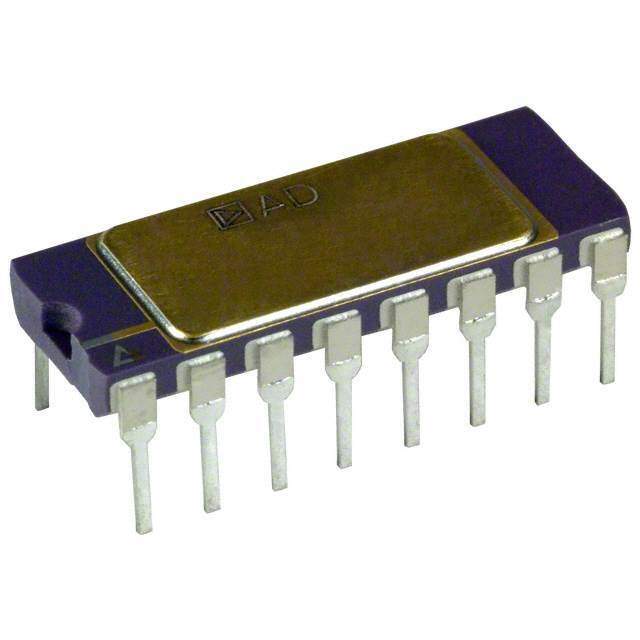

The AD624BD is packaged in a 16-lead ceramic dip (CDIP) and is specified over the extended industrial temperature range of -40°C to +85°C. Its robust design and reliable performance make it a preferred choice for professionals seeking a high-quality instrumentation amplifier for their precision applications.
