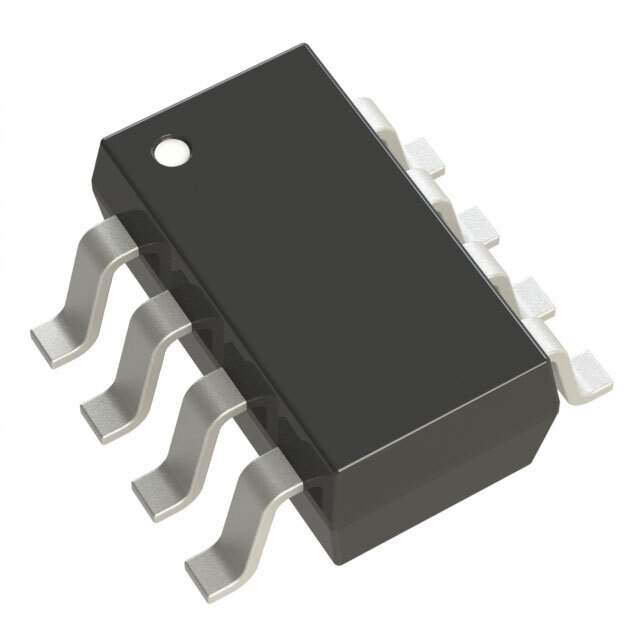

AD5228BUJZ50-R2

Part No AD5228BUJZ50-R2
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Digital Potentiometers
Description 32-Position Manual Up/Down Control Potentiometer
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Part Status Obsolete(EOL)
Taper Linear
Configuration Potentiometer
Number of Circuits 1
Number of Taps 32
Resistance (Ohms) 50k
Interface Pushbutton
Memory Type Volatile
Operating Supply Voltage 2.7 V ~ 5.5 V
Tolerance ±20%
Temperature Coefficient (Typ) 35 ppm/°C
Resistance - Wiper (Ohms) (Typ) 100
Operating Temperature Range -40°C ~ 105°C
Package SOT-23-8 Thin, TSOT-23-8
Manufacturer Package TSOT-23-8
Win Source Part Number 1135958-AD5228BUJZ50-R2
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Family Name AD5228
Introduction Date August 06, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian AD5228BUJZ50-R2 CAD Model

Description

Analog Devices Inc. AD5228BUJZ50-R2 Digital Potentiometer

The AD5228BUJZ50-R2 is a high-performance digital potentiometer manufactured by Analog Devices Inc., a leader in the design and production of high-quality integrated circuits. This particular model offers a compact, reliable solution for applications requiring precise resistance adjustments. The digital potentiometer is designed to emulate a mechanical potentiometer and can be used to adjust and control various parameters within electronic circuits, such as volume control, gain adjustment, and filter tuning.

The AD5228BUJZ50-R2 offers a resistance range of 50 kΩ and is available in a compact SOT-23-8 package, making it suitable for space-constrained applications. The device operates with a single supply voltage ranging from 2.7V to 5.5V, which allows for flexible integration within various system voltage levels. The digital interface is controlled via a simple up/down command, which is easy to implement with minimal microcontroller or processor overhead.

Featuring 64-position adjustment capability, this digital potentiometer provides designers with a fine resolution for precise control. The robust design ensures stable performance over varying temperatures, making the AD5228BUJZ50-R2 suitable for a wide range of environments and applications. The device also includes an extra shutdown feature that reduces the power consumption when not in active use, which is crucial for battery-powered devices.

Applications for the AD5228BUJZ50-R2 are diverse and include consumer electronics, automotive systems, industrial controls, and communication systems where reliable and accurate adjustment of electronic signals is essential. Its ease of use, coupled with the reputation of Analog Devices for producing high-quality components, makes the AD5228BUJZ50-R2 a preferred choice for engineers and designers seeking to enhance the performance and efficiency of their electronic systems.

In summary, the AD5228BUJZ50-R2 from Analog Devices Inc. is a versatile and reliable digital potentiometer that offers precise control, low power consumption, and a compact form factor, making it an excellent choice for a multitude of electronic applications.
