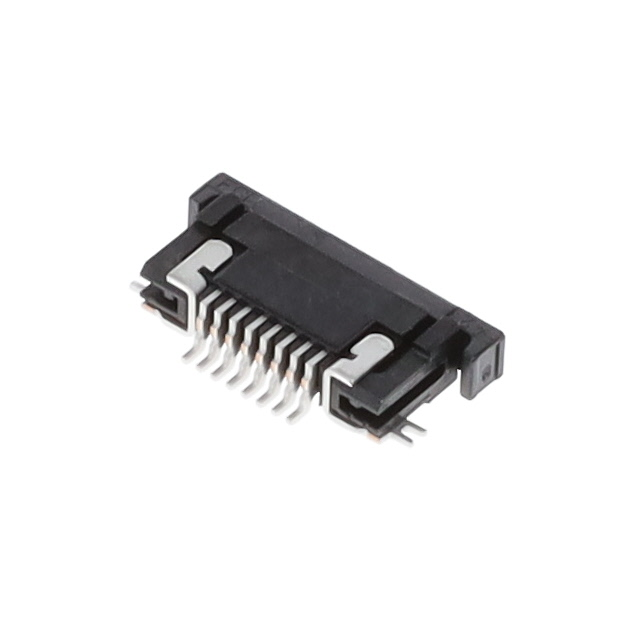

The 1333364-SFV8R-1STE1HLF is an FFC, FPC (Flat Flexible) Connector Assembly from Amphenol ICC (FCI).

• Manufacturer: Amphenol ICC (FCI)
• Win Source Part Number: 1333364
• Package: Reel - TR
• Standard Package: 3,000 Units
• Positions: 8
• Pitch: 0.020" (0.50mm)
• Feature: Zero Insertion Force (ZIF)
• Termination: Solder
• Contact Finish: Tin
• Contact Material: Phosphor Bronze
• Voltage Rating: 50V
• Height Above Board: 0.071" (1.80mm)
• FFC, FCB Thickness: 0.30mm, 0.33mm
• Locking Feature: Slide Lock
• Cable End Type: Straight, Tapered
• Housing Material: Polyamide (PA), Nylon, Glass Filled, Halogen-Free
• Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen-Free
• Material Flammability Rating: UL94 V-0
• Housing Color: Black
• Mounting: Surface Mount, Right Angle
• Mating Cycles: 20
• Operating Temperature Range: -55°C ~ 105°C
• MSL Level: 1 (Unlimited)
• Current Rating (Amps): 0.5A
• HTSUS Code: 8536.69.4051
• REACH Status: REACH Unaffected
• Other Part Numbers: 609-6232-1,609-6232-2,SFV8R-1STE1HLF-ND,609-6232-6
