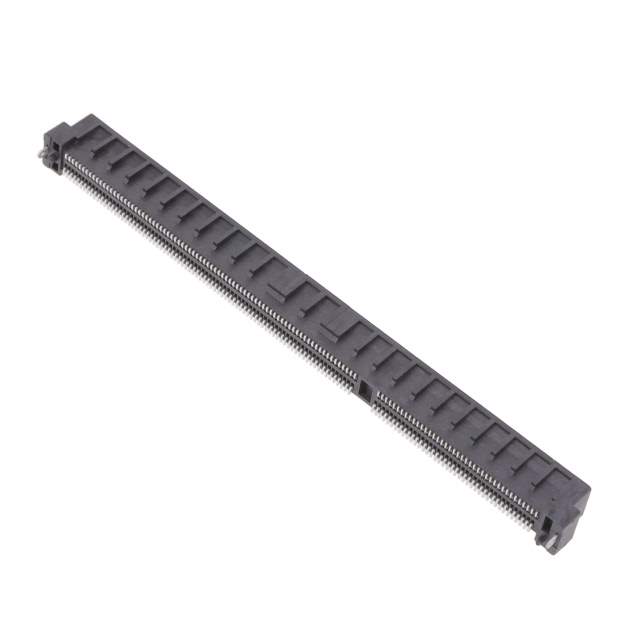

SE1024026111111 Real Image
Same model may have multiple batches, images only for reference.

SE1024026111111

Part No SE1024026111111
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 240P 0.026 / 240 Position Female Connector Non Specified - Dual Edge Gold 0.026" (0.65mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 240
Card Thickness 0.063" (1.60mm)
Number of Rows 2
Pitch 0.026" (0.65mm)
Read Out Dual
Features Board Guide, Board Lock
Mounting Surface Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 105°C
Material - Insulation Thermoplastic
Base Product Number SE102
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 24
Win Source Part Number 1334025-SE1024026111111
Ultra Librarian 3D Model Ultra Librarian SE1024026111111 CAD Model

Description

The SE1024026111111 is a 240 positions edgeboard connector from Amphenol ICC (FCI).

  • Positions: 240
  • Pitch: 0.026 inches (0.65 mm)
  • Termination: Surface Mount
  • Contact Type: Cantilever
  • Contact Finish: Gold
  • Material: Copper Alloy
  • Insulation Material: Thermoplastic
  • Operating Temperature Range: -55°C to 105°C
