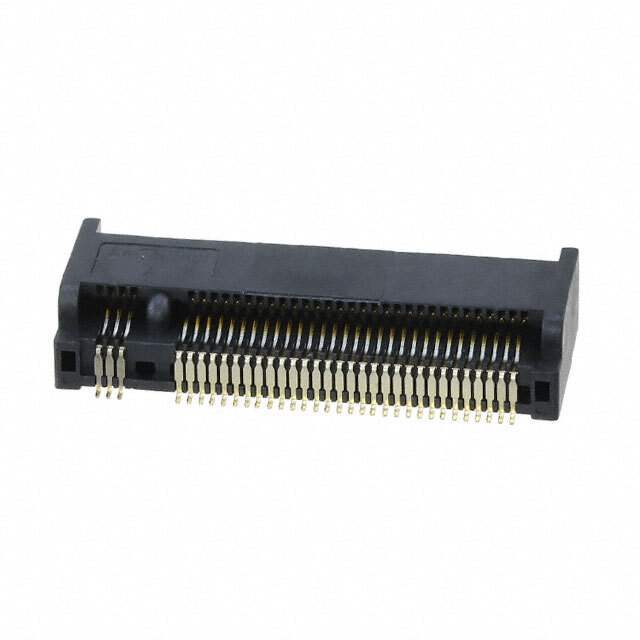

MDT420E01001 Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

MDT420E01001

Part No MDT420E01001
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN M.2 FMALE 67POS 0.020 GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201453-MDT420E01001
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects -Card Edge Connectors -Edgeboard Connectors
Series M.2
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Gender Female
Number of Positions 67
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Operating Temperature -40°C ~ 80°C
Ultra Librarian 3D Model Ultra Librarian MDT420E01001 CAD Model

Description

The M.2 card edge connector from Amphenol ICC (FCI) is a high-quality electronic component designed for reliable and efficient connections. Bold the product name (e.g., BAV99S,135 -> BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. -> Nexperia USA Inc.).

  • Positions: 67
  • Termination: Solder
  • Mounting Type: Surface Mount, Right Angle
  • Contact Material: Copper Alloy
  • Operating Temperature: -40°C to 80°C
  • Package: Tape & Reel (TR) Cut Tape (CT)
  • Product Status: Active
