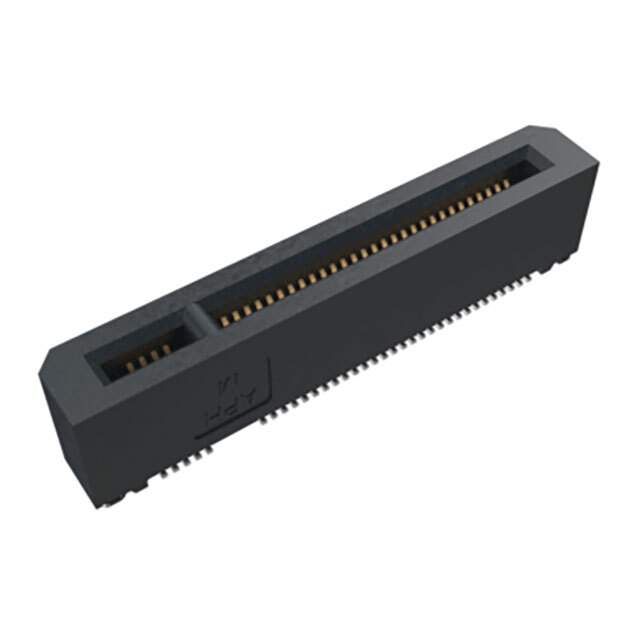

Same model may have multiple batches, images only for reference.

MDT350M01001VT

Name: MDT350M01001VT
Brand: Amphenol
SKU: 1201427
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MDT350M01001VT
Manufacturer	Amphenol
Catalog	Card Edge Connectors - Edgeboard Connectors
Description	CONN M.2 FMALE 67POS 0.020 GOLD / 67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr	Amphenol ICC (FCI)
Package	Tape & Reel
Card Type	M.2 (NGFF) Mini Card
Gender	Female
Number of Positions	67
Card Thickness	0.031" (0.79mm)
Number of Rows	2
Pitch	0.020" (0.50mm)
Read Out	Dual
Features	Board Guide, Locking Ramp, Solder Retention
Mounting	SMD (SMT)
Termination	Solder
Contact Material	Copper Alloy
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Color	Black
Temperature Range - Operating	-40°C ~ 80°C
Material - Insulation	Liquid Crystal Polymer (LCP)
Base Product Number	MDT350
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-6591DKR,609-6591TR,609-6591CT
Standard Package	750
Win Source Part Number	1201427-MDT350M01001VT
Ultra Librarian 3D Model	Ultra Librarian MDT350M01001VT CAD Model

Alternative Products

Description

The MDT350M01001VT is a 67-position, 2-row, female connector that is designed for M.2 (NGFF) mini card.

Positions: 67
Rows: 2
Gender: Female
Application: M.2 (NGFF) Mini Card
Pitch: 0.020" (0.50mm)
Card Thickness: 0.031" (0.79mm)
Mounting Type: SMD (SMT)
Termination: Solder
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Insulation Material: Liquid Crystal Polymer (LCP)
Package: Tape & Reel
Features: Board Guide, Locking Ramp, Solder Retention
Temperature Range: -40°C to 80°C
ECCN: EAR99
Standard Package: 750
Manufacturer: Amphenol ICC (FCI)
