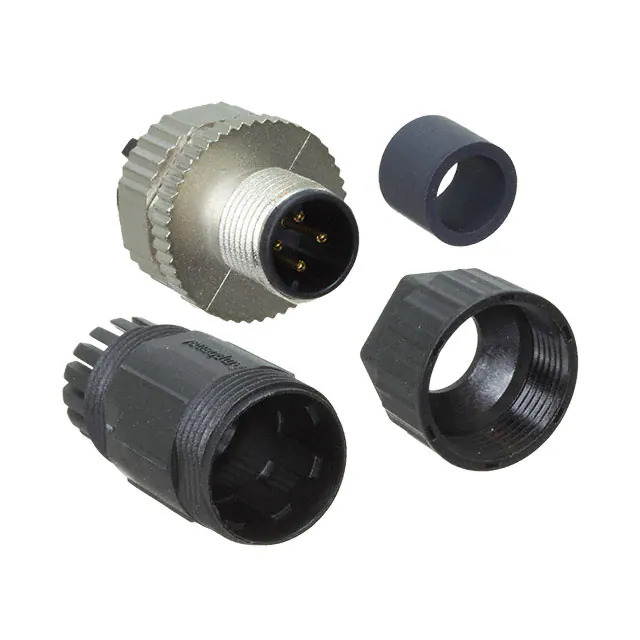

Same model may have multiple batches, images only for reference.
M12D-04BMMB-SL7001 Amphenol
Same model may have multiple batches, images only for reference.

M12D-04BMMB-SL7001

Part No M12D-04BMMB-SL7001
Manufacturer Amphenol
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 4POS GOLD SCREW / 4 Position Circular Connector Receptacle, Male Pins Screw
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Amphenol LTW
Series M
Package Bulk
Product Status Active
Connector Type Receptacle, Male Pins
Number of Positions 4
Shell Size - Insert M12-4
Shell Size, MIL -
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Termination Screw
Fastening Type Threaded
Orientation D
Primary Material Plastic
Shell Material Polyamide (PA), Nylon
Shell Finish -
Contact Finish - Mating Gold
Color Black
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating -
Features Backshell, Cable Clamp
Shielding Unshielded
Current Rating (Amps) 4A
Voltage Rating 250V
Cable Opening 0.157" ~ 0.315" (4.00mm ~ 8.00mm)
Temperature Range - Operating -40°C ~ 105°C
Backshell Material, Plating Polyamide (PA), Nylon
Contact Material Copper Alloy
Contact Finish Thickness - Mating -
Insert Material Polyamide (PA), Nylon
Applications -
Base Product Number M12D-04BMMB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1366101-M12D-04BMMB-SL7001
Ultra Librarian 3D Model Ultra Librarian M12D-04BMMB-SL7001 CAD Model

Description

The Amphenol LTW M12D-04BMMB-SL7001 is a free hanging circular connector assembly.

  • Current Rating: 4A
  • Fastening Type: Threaded
  • Housing Color: Black
  • Shielded: Unshielded
  • Connector Type: Receptacle
  • Contact Gender: Male
  • Number of Positions: 4
  • Termination: Screw
  • Contact Finish: Gold
  • Ingress Protection: IP67
  • Shell Material: Polyamide (PA), Nylon
  • Mounting Type: Free Hanging
