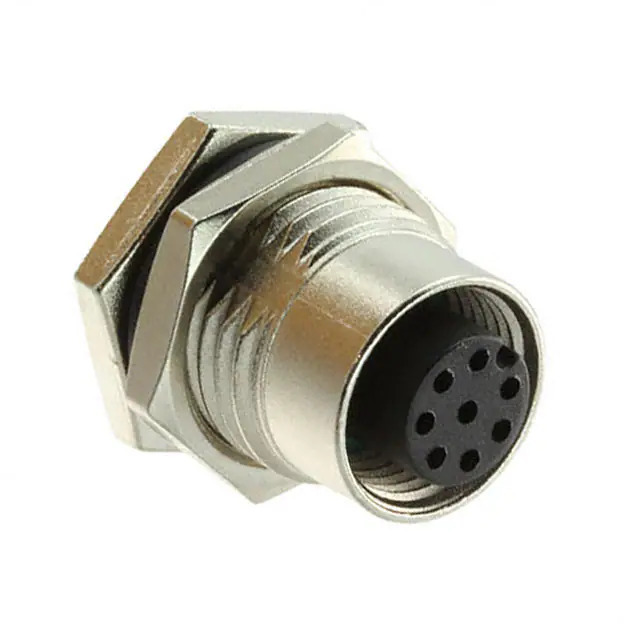

M12A-08PFFS-SF8001 Amphenol
Same model may have multiple batches, images only for reference.

M12A-08PFFS-SF8001

Part No M12A-08PFFS-SF8001
Manufacturer Amphenol
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 8P GOLD SLDR CUP / 8 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
M12A-08PFFS-SF8001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Amphenol LTW
Series M
Package Tray
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 8
Shell Size - Insert M12-8
Shell Size, MIL -
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Termination Solder Cup
Fastening Type Threaded
Orientation A
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating -
Features -
Shielding Shielded
Current Rating (Amps) 2A
Voltage Rating 30VAC/DC
Cable Opening -
Temperature Range - Operating -40°C ~ 105°C
Backshell Material, Plating -
Contact Material Copper Alloy
Contact Finish Thickness - Mating -
Insert Material Polyamide (PA), Nylon, Glass Filled
Applications -
Base Product Number M12A-08PFFS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1366110-M12A-08PFFS-SF8001
Ultra Librarian 3D Model Ultra Librarian M12A-08PFFS-SF8001 CAD Model

Description

The Amphenol LTW M12A-08PFFS is a circular connector assembly with a receptacle and female sockets from Amphenol LTW.

  • Product Status: Active
  • Series: M
  • Package: Tray
  • Mounting Type: Panel Mount, Through Hole
  • Temperature Range: -40°C to 105°C
  • Shielded: Yes
  • Color: Silver
  • Termination Type: Solder Cup
  • Number of Positions: 8
  • Ingress Protection: IP68/IP69K
  • Features: Dust Tightness, Water Resistance, Waterproofing
  • Current Rating: 2A
  • Voltage Rating: 30VAC/DC
