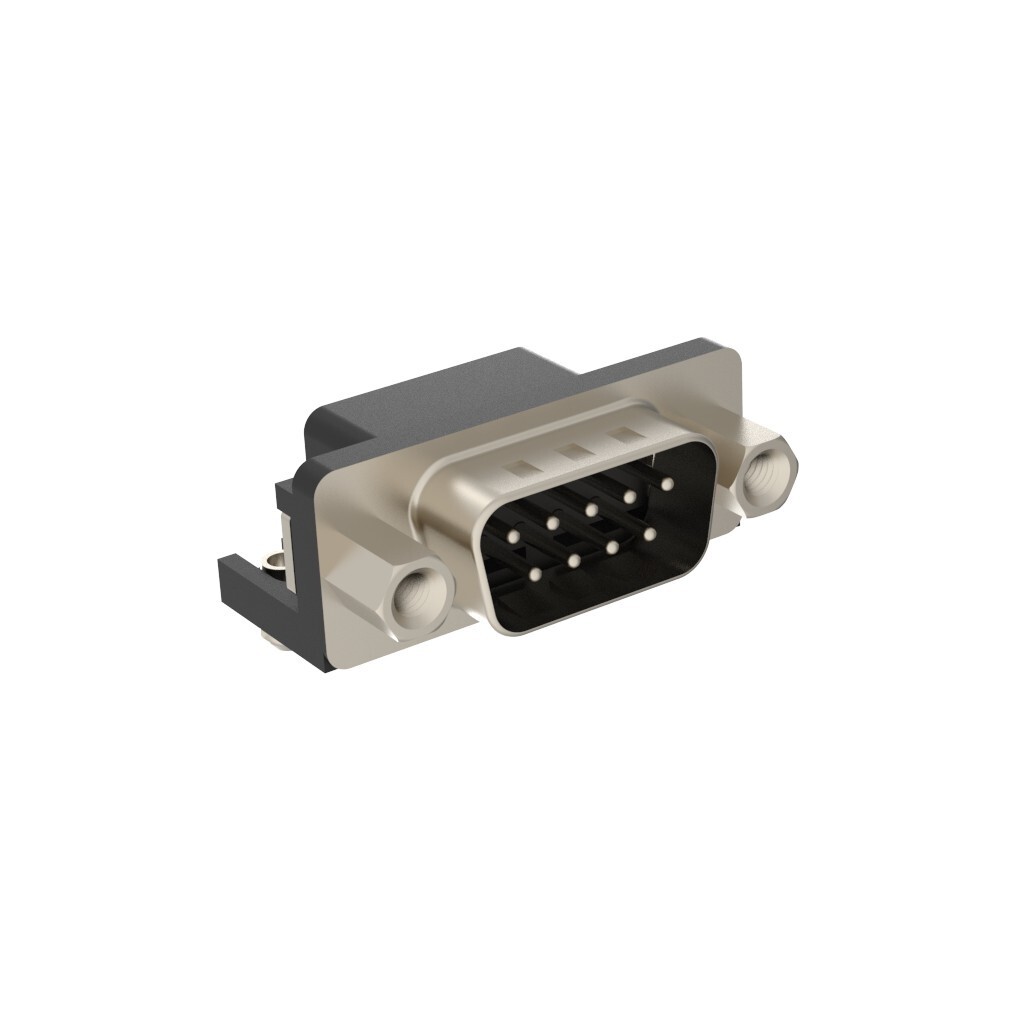

Same model may have multiple batches, images only for reference.
L77SDEH09SOL2RM5C309 Amphenol – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

L77SDEH09SOL2RM5C309

Part No L77SDEH09SOL2RM5C309
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS VERT SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Board Lock
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1624683-L77SDEH09SOL2RM5C309
Ultra Librarian 3D Model Ultra Librarian L77SDEH09SOL2RM5C309 CAD Model
