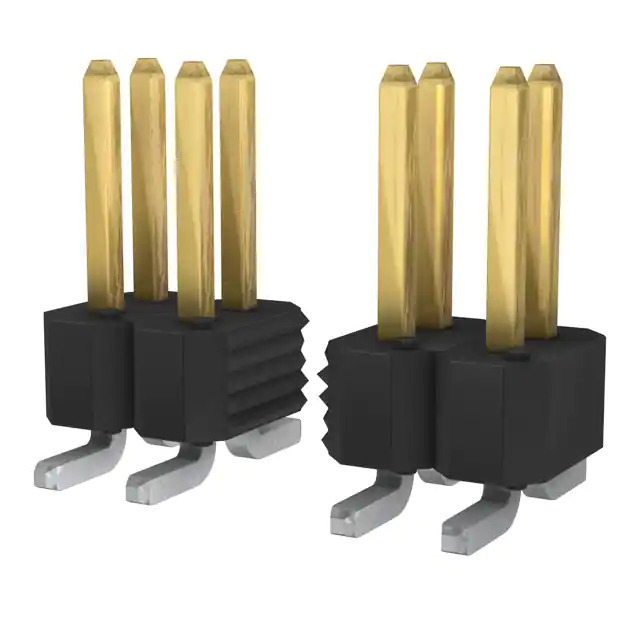

Same model may have multiple batches, images only for reference.

95278-101A12LF

Name: 95278-101A12LF
Brand: Amphenol
SKU: 1366040
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	95278-101A12LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 12POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK®
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.232" (5.90mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic
Features	Pick and Place
Temperature Range - Operating	-65°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	78.7µin (2.00µm)
Applications	-
Base Product Number	95278
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366040-95278-101A12LF
Ultra Librarian 3D Model	Ultra Librarian 95278-101A12LF CAD Model

Alternative Products

Description

The 1366040-95278-101A12LF is a male pin header connector from the BERGSTIK series manufactured by Amphenol ICC (FCI).

Series: BERGSTIK
Connection Type: Board to Board
Pitch: 0.100" (2.54mm)
Number of Positions: 12
Number of Rows: 2
Fastening Type: Push-Pull
Contact Length - Mating: 0.232" (5.90mm)
Termination: Solder
Contact Finish - Mating: Gold with GXT™
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Finish Thickness - Post: 78.7µin (2.00µm)
Contact Material: Phosphor Bronze
Insulation Material: Thermoplastic
Insulation Color: Black
Flammability Rating: UL94 V-0
Operating Temperature: -65°C to 125°C
REACH: Unaffected
ECCN: EAR99
