Same model may have multiple batches, images only for reference.

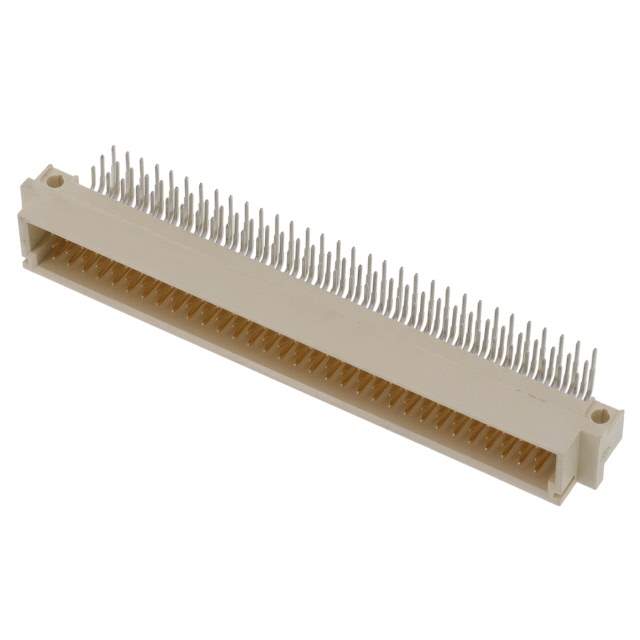

86093967113B55F1LF Real Image
Same model may have multiple batches, images only for reference.

86093967113B55F1LF

Part No 86093967113B55F1LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description DIN HT TYPEC RAHDR LFCNR / 96 Position Din Connector Header, Male Pins Gold, GXT™ Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Type Header, Male Pins
Number of Positions 96
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style C/2 (1/2 C)
Level, Class 2
Mounting Through Hole, Right Angle
Termination Solder
Features Board Lock
Contact Finish Gold, GXT™
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number 8609396711
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-86093967113B55F1LF
Standard Package 16
Win Source Part Number 1333143-86093967113B55F1LF
Ultra Librarian 3D Model Ultra Librarian 86093967113B55F1LF CAD Model

Description

The Amphenol ICC (FCI) 1333143-86093967113B55F1LF is a DIN 41612 header connector with male pins.

  • Positions: 96
  • Rows: 3-row
  • Pitch: 0.100 inches (2.54mm)
  • Feature: Board Lock
  • Termination Method: Solder
  • Contact Finish: Gold with GXT™
  • Insulation Material: Liquid Crystal Polymer (LCP), UL94 V-0
  • Temperature Range: -55℃ to 125℃
  • RoHS3 Compliant: Yes
  • REACH: Affected
