Same model may have multiple batches, images only for reference.

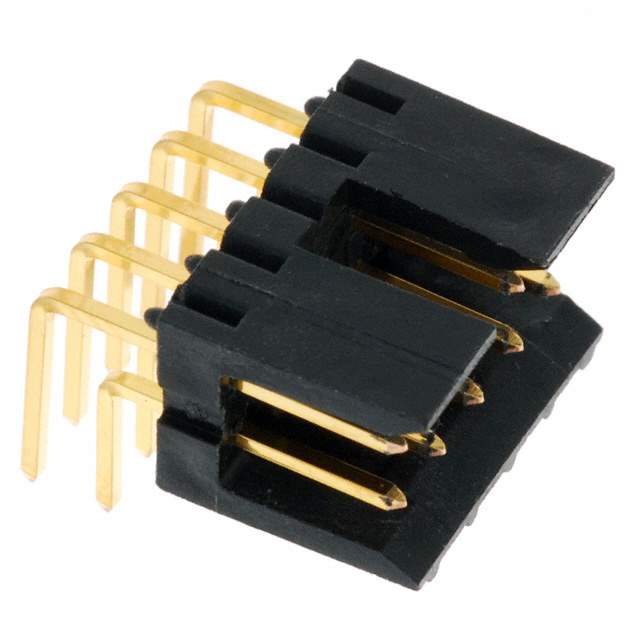

78207-110HLF Real Image
Same model may have multiple batches, images only for reference.

78207-110HLF

Part No 78207-110HLF
Manufacturer Amphenol
Catalog Circular Connectors - Housings
Description CONN HEADER R/A 10POS 2.54MM / Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Mini-PV™, Basics+
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.303" (7.70mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Material Phosphor Bronze
Features Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 78207
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-2438,2266-78207-110HLF,78207110HLF
Standard Package 200
Win Source Part Number 1224201-78207-110HLF
Ultra Librarian 3D Model Ultra Librarian 78207-110HLF CAD Model

Description

The Amphenol 1224201-78207-110HLF is a rectangular connector header with ten positions.

  • Positions: 10
  • Keying Slot: Yes
  • Termination: Solder
  • Shroud: Two Walls
  • Fastening Type: Friction Lock
  • Application: Board to Cable/Wire
  • Pitch: 0.100" (2.54mm)
  • Category: Rectangular Connectors - Headers, Male Pins
  • RoHS: Compliant
  • Manufacturer: Amphenol ICC (FCI)
