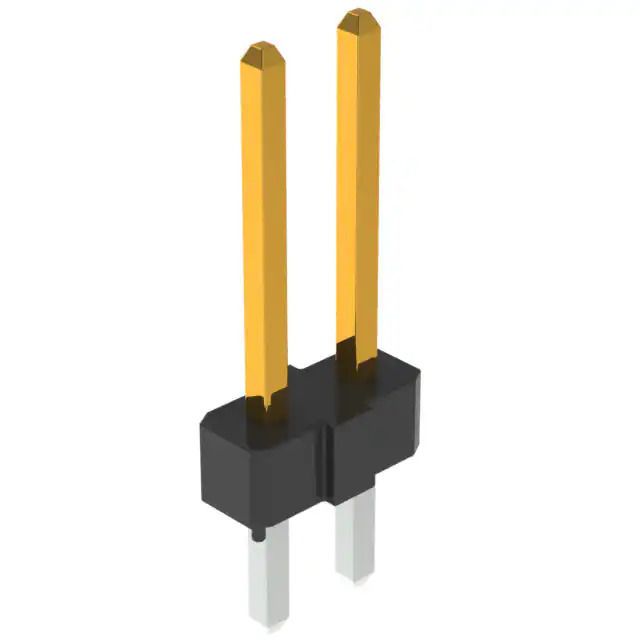

Same model may have multiple batches, images only for reference.

67998-100HLF

Name: 67998-100HLF
Brand: Amphenol
SKU: 1366003
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	67998-100HLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 45000POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK® II
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	Cuttable
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.318" (8.08mm)
Contact Length - Post	0.107" (2.71mm)
Overall Contact Length	0.525" (13.34mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	-
Contact Material	Phosphor Bronze
Insulation Material	-
Features	-
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	5A
Voltage Rating	110V
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	67998
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366003-67998-100HLF
Ultra Librarian 3D Model	Ultra Librarian 67998-100HLF CAD Model

Description

The 1366003-67998-100HLF is a male pin header connector from the BERGSTIK II series by Amphenol ICC (FCI).

Connector Type: Header, Male Pins
Current Rating (Amps): 5A
Voltage Rating: 110V
Mounting Type: Through Hole
Fastening Type: Push-Pull
Number of Positions: Cuttable
Pitch - Mating: 0.100" (2.54mm)
Color: Black
Packaging: Tape & Reel (TR)
Series: BERGSTIK II
Flammability Rating: UL94 V-0
Style: Board to Board
Lifecycle Status: Active
