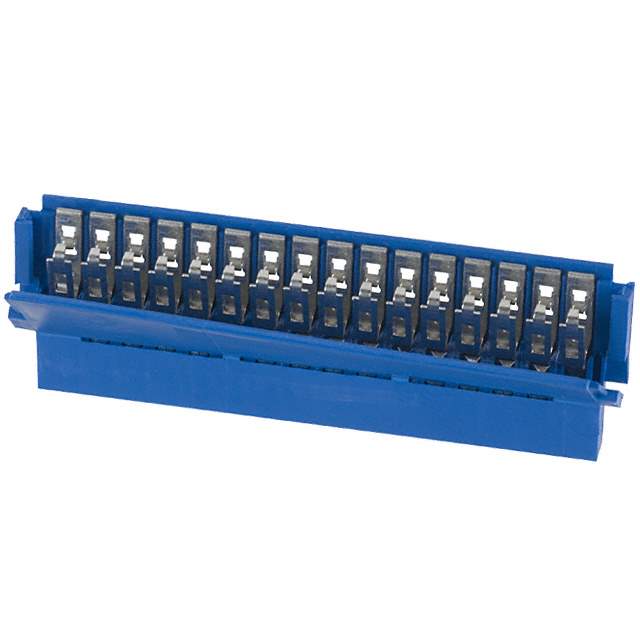

The Clincher™ series FFC, FPC (Flat Flexible) Connectors are a perfect solution for your electronic components needs.

• Positions: 16 positions
• Pitch: 0.100'' (2.54mm)
• Applications: solder retention and zero insertion force (ZIF)
• Solder Contact Finish: tin
• Contact Material: copper nickel alloy
• Housing Material: thermoplastic material
• Flammability Rating: UL94 V-0
• Housing Color: blue
• Voltage: 500V
• Temperature Range: -65°C to 105°C
• Package: tray package
• Lock Feature: slide lock
• Cable End Types: straight and tapered
• Connector/Contact Type: receptacle
• FFC, FCB Thicknesses: 0.30mm and 0.33mm
• Height above board: -
• Mating Cycle: 100
• Mounting Type: free hanging (in-line)
