Same model may have multiple batches, images only for reference.

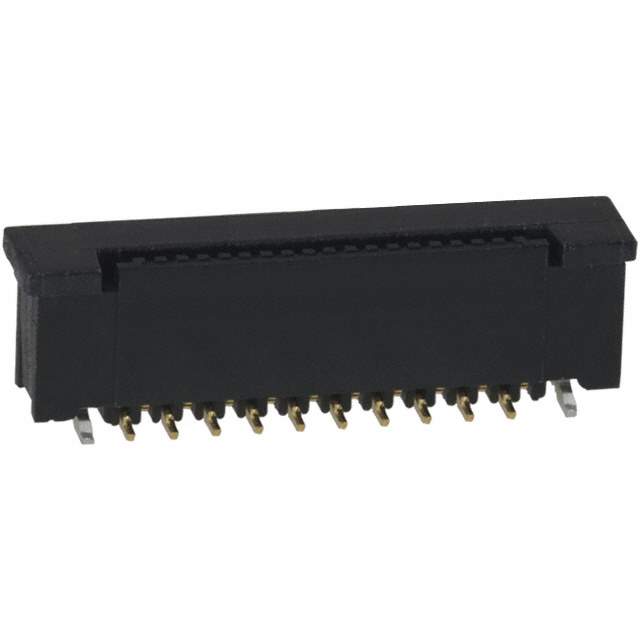

62674-201121ALF Real Image
Same model may have multiple batches, images only for reference.

62674-201121ALF

Part No 62674-201121ALF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 20POS 0.5MM SMD / 20 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Amphenol ICC (FCI)
Series SFV-S
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 20
Pitch 0.020" (0.50mm)
Termination Kinked Pin
FFC, FCB Thickness 0.30mm
Height Above Board 0.161" (4.10mm)
Cable End Type Straight or Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Plastic, Glass Filled
Actuator Material Plastic, Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Mating Cycles 20
Base Product Number 62674
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1337321-62674-201121ALF
Ultra Librarian 3D Model Ultra Librarian 62674-201121ALF CAD Model

Description

The Amphenol ICC (FCI) 1337321-62674-201121ALF is an FFC/FPC connector assembly with 20 positions in a vertical 1-sided configuration.

  • Number of Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Mounting Type: Surface Mount, Right Angle
  • Mating Cycle: 20
  • Cable End Type: Tapered
  • Actuator Material: Liquid Crystal Polymer (LCP)
  • Features: Zero Insertion Force (ZIF)
  • Termination: Kinked Pin
  • FFC, FPC Thickness: 0.30mm
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Housing Material: Plastic with Glass Filling
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Operating Temperature: -55℃ ~ 105℃
