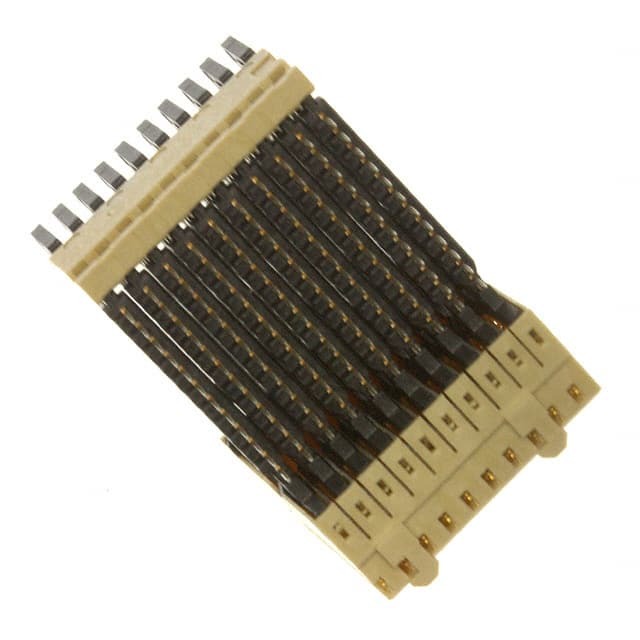

10035754-101LF
Same model may have multiple batches, images only for reference.

10035754-101LF

Part No 10035754-101LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN RECEPT 120POS 2MM R/A PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Amphenol
Series Airmax VS®
Package Bulk
Product Status Active
Connector Usage Backplane
Connector Type Receptacle, Female Sockets
Connector Style High Speed
Number of Positions 120
Number of Positions Loaded All
Pitch 0.055" (1.40mm)
Number of Rows 12
Number of Columns 10
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 40 Differential Pairs, 40 Ground
Contact Finish Gold
Color Natural
Material Flammability Rating UL94 V-0
Base Product Number 10035754
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853560-10035754-101LF
Ultra Librarian 3D Model Ultra Librarian 10035754-101LF CAD Model

Description

The 853560-10035754-101LF is a specialized backplane connector from the Airmax VS® series by Amphenol.

  • Series: Airmax VS®
  • Connector Type: Receptacle
  • Gender: Female
  • Positions: 120
  • Pitch: 0.055" (1.40mm)
  • Color: Natural
  • Application: Backplane
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Flammability Rating: UL94 V-0
  • Temperature Range: Wide Temperature Range
  • Packaging: Bulk
  • Standard Package: 25 pcs
  • Product Status: Active
