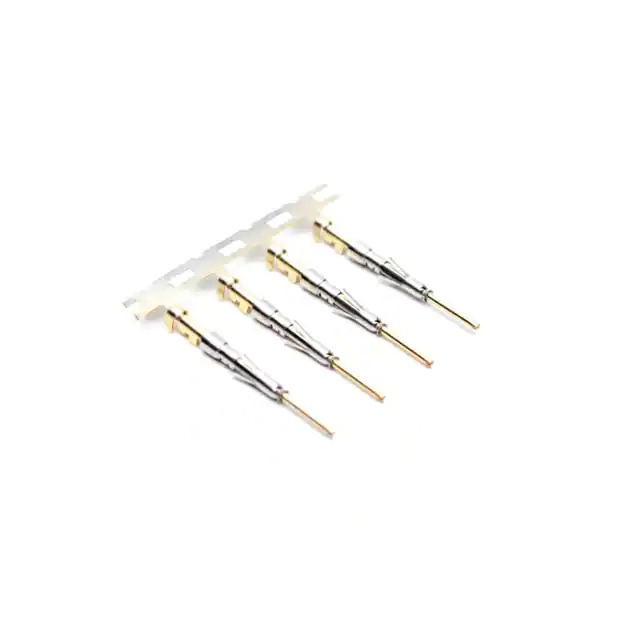

Same model may have multiple batches, images only for reference.
SP24W1F Amphenol Sine Systems Corp
Same model may have multiple batches, images only for reference.

SP24W1F

Part No SP24W1F
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors - Contacts
Description CONTACT PIN 24-26AWG SZ20 CRIMP / Pin Contact 24-26 AWG Size 20 Crimp Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Contacts
Mfr Amphenol Sine Systems Corp
Series ecomate® Aquarius™
Package Tape & Reel
Product Status Obsolete
Type Signal, Stamped
Contact Type Pin
Contact Size 20
Wire Gauge or Range - AWG 24-26 AWG
Wire Gauge or Range - mm² 0.14 ~ 0.25mm²
Wire Gauge or Range - Coaxial -
Contact Termination Crimp
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness Flash
Termination Finish -
Features Insulation Support
Base Product Number SP24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362924-SP24W1F
Ultra Librarian 3D Model Ultra Librarian SP24W1F CAD Model

Description

The SP24W1F is a circular connector contact from the ecomate® Aquarius™ series manufactured by Amphenol Sine Systems Corp.

  • Series: ecomate® Aquarius™
  • Type: Signal, Stamped
  • Insulation Support: Yes
  • Termination: Crimp
  • Contact Finish: Gold, Flash
  • Contact Material: Copper Alloy
  • Contact Size: 20
  • Wire Gauge: 24-26 AWG or 0.14 ~ 0.25mm²
  • Category: Circular Connectors
  • Packaging: Tape & Reel
  • Product Status: Obsolete
  • REACH Status: No impact
  • HTSUS Code: 8536.90.4000
