Same model may have multiple batches, images only for reference.

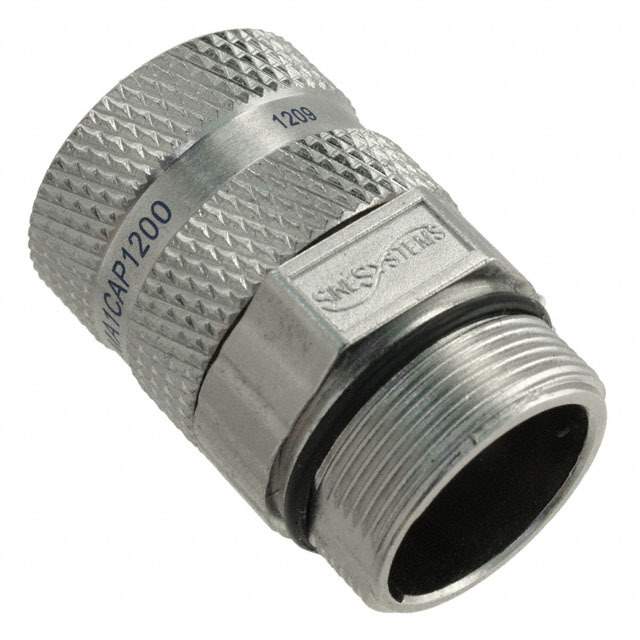

MA1CAP1200 Real Image
Same model may have multiple batches, images only for reference.

MA1CAP1200

Part No MA1CAP1200
Manufacturer Amphenol Sine Systems Corp
Catalog Circular Connectors - Housings
Description CONN PLUG HSNG F/M 12POS INLINE / 12 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Datasheet
MA1CAP1200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer Amphenol Sine Systems Corp
Packaging Bulk
Connector Type Plug Housing
Type For Female Sockets or Male Pins
Number of Positions 12
Shell Size - Insert M23-12
Contact Type Crimp
Contact Size 1.0mm
Mounting Free Hanging (In-Line)
Fastening Type Threaded
Orientation P
Shell Material Zinc Die Cast
Shell Finish Nickel
Housing Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Features Coupling Nut
Shielding Shielded
Note Contacts Not Included
Insert Material Polyamide (PA66), Nylon 6/6
Contact Shape Circular
Temperature Range - Operating -20°C ~ 130°C
Base Product Number MA1CAP
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 889-1069
Standard Package 200
Win Source Part Number 1334504-MA1CAP1200
Ultra Librarian 3D Model Ultra Librarian MA1CAP1200 CAD Model

Description

The Amphenol Sine Systems Corp circular connector housing is designed for 12 female sockets or male pins.

  • Shell Size Insert: M23-12
  • Housing Color: Silver
  • Shielded: Yes
  • Ingress Protection: IP67
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -20°C to 130°C
  • REACH: Unaffected
  • ROHS3 Compliant: Yes
