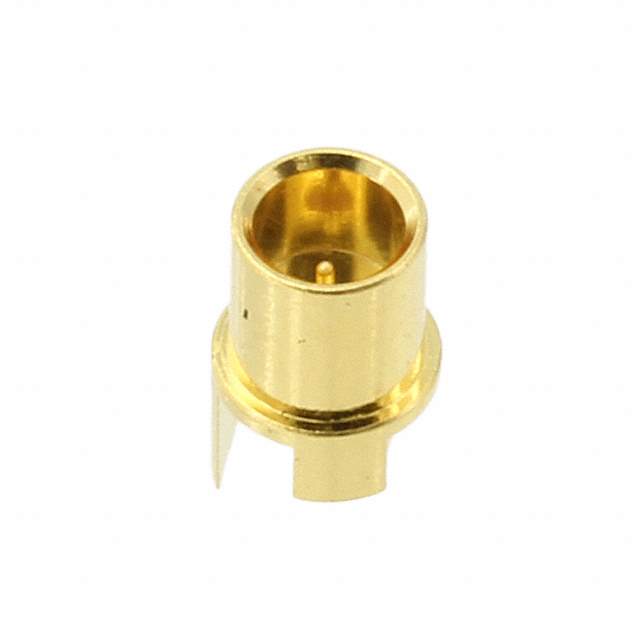

302100 Real Image
Same model may have multiple batches, images only for reference.

302100

Part No 302100
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMP RCPT STR 50OHM EDGE MNT / SMP Connector Receptacle, Male Pin 50Ohm Board Edge, End Launch Solder
Datasheet
302100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Series -
Package Bulk
Connector Style SMP
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Board Edge, End Launch
Mounting Feature -
Cable Group -
Fastening Type Snap-On
Frequency - Max 26.5 GHz
Number of Ports 1
Features Smooth Bore
Housing Color Gold
Ingress Protection -
Center Contact Material Brass
Includes -
Body Material Beryllium Copper
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 500 V
Mating Cycles 100
Insertion Loss -
Base Product Number 3021
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1381840-302100
Ultra Librarian 3D Model Ultra Librarian 302100 CAD Model

Description

The 302100 is a coaxial connector assembly with a smooth bore feature. It is a receptacle with a male pin and has a snap-on fastening type.

  • Connector Type: Coaxial Connector Assembly
  • Style: Smooth Bore
  • Connector Series: SMP
  • Connector Type: Receptacle, Male Pin
  • Fastening Type: Snap-On
  • Voltage - Rated: 500V
  • Frequency - Max: 26.5 GHz
  • Impedance: 50 Ohms
  • Material - Body: Beryllium Copper
  • Color: Gold
  • Packaging: Bulk
  • Mounting Type: Board Edge, End Launch
  • Operating Temperature: -65°C ~ 165°C
  • Manufacturer: Amphenol-RF Division
  • REACH: Affected
