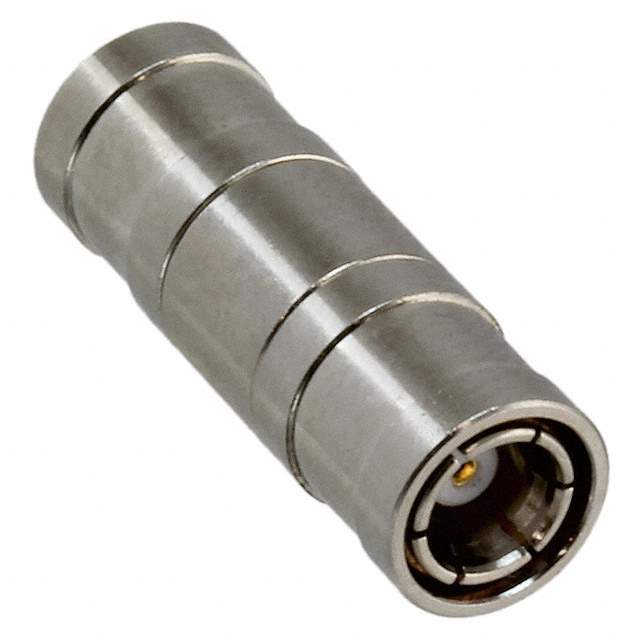

142245 Real Image
Same model may have multiple batches, images only for reference.

142245

Part No 142245
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT PLUG-PLUG SMB 50 OHM
Datasheet
142245 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Bulk
Status Active
Adapter Type Plug to Plug
Conversion Type Same Series
Adapter Series SMB to SMB
Center Gender Female to Female
Convert From (Adapter End) SMB Plug, Female Socket
Convert To (Adapter End) SMB Plug, Female Socket
Impedance 50 Ohm
Style Straight
Mounting Free Hanging (In-Line)
Fastening Type Snap-On, Snap-On
Maximum Input Frequency 4GHz
Center Contact Plating Gold
Body Material Brass
Body Finish Nickel
Center Contact Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C to 165°C
Win Source Part Number 1030869-142245
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 142245 CAD Model

Description

The 1030869-142245 from Amphenol RF Division is a straight plug to plug adapter that features a snap-on fastening type and a free hanging (in-line) mounting style.

  • Impedance: 50 Ohm
  • Material: Brass
  • Finish: Nickel
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
