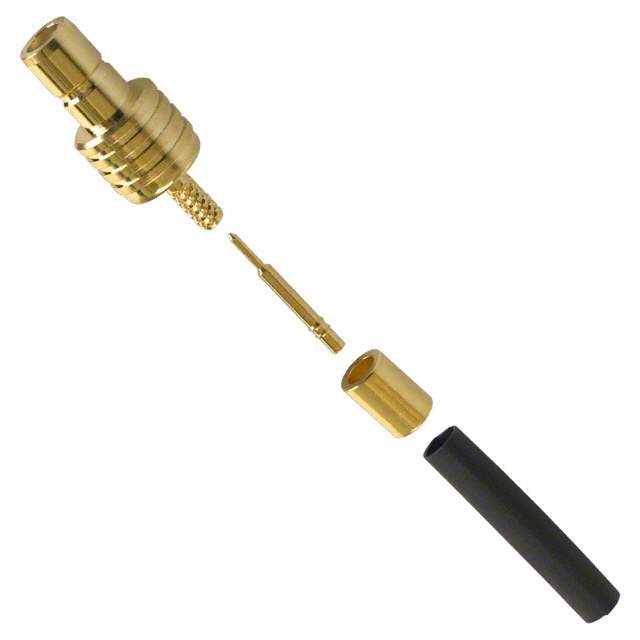

142241 Real Image
Same model may have multiple batches, images only for reference.

142241

Part No 142241
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN SMB JACK STR 50 OHM SOLDER / Conn SMB 0Hz to 4GHz 50Ohm Solder ST Cable Mount RCP Gold
Datasheet
142241 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Bulk
Connector Style SMB
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Crimp
Impedance 50 Ohm
Mounting Free Hanging (In-Line)
Cable Group RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Fastening Type Snap-On
Frequency - Max 4GHz
Housing Color Gold
Includes 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature Range -65°C ~ 165°C
Center Contact Material Brass
Voltage Rating 335V
Mating Cycles 500
Insertion Loss 0.3dB
Win Source Part Number 771942-142241
Popularity Medium
Supply and Demand Status Limited
Family Name 142241
Introduction Date January 24, 2006
ECCN EAR99
Country of Origin China, Germany, Mexico , United States of America
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 142241 CAD Model

Description

The 771942-142241 is an electronic component manufactured by Amphenol RF Division.

  • Connector Type: Jack, Male Pin
  • Fastening Type: Snap-on
  • Voltage Rating: 335V
  • Frequency - Max: 4GHz
  • Operating Temperature: -65°C ~ 165°C
