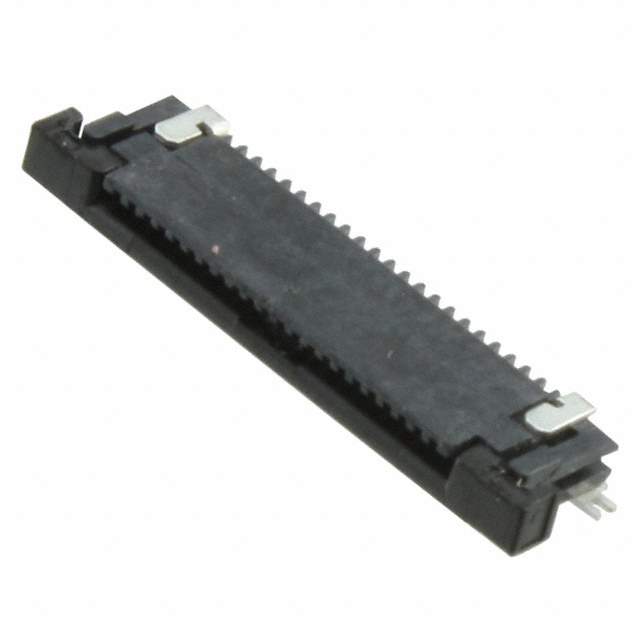

SFV22R-2STE1HLF

Name: SFV22R-2STE1HLF
Brand: Amphenol FCI
SKU: 512189
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SFV22R-2STE1HLF
Manufacturer	Amphenol FCI
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC TOP 22POS 0.50MM R/A
Datasheet	SFV22R-2STE1HLF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol FCI
Packaging	Reel - TR
Status	Active
Flat Flex Type	FFC, FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top
Number of Positions	22
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm, 0.33mm
Height Above Board	0.071" (1.80mm)
Locking Feature	Slide Lock
Cable End Type	Straight, Tapered
Contact Finish	Tin
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-55°C to 105°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Housing Color	Black
Actuator Color	Black
Mating Cycles	20
Win Source Part Number	1095456-SFV22R-2STE1HLF
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian SFV22R-2STE1HLF CAD Model

Alternative Products

Description

The Amphenol FCI 1095456-SFV22R-2STE1HLF is a zero insertion force (ZIF) connector designed for flat flex cables (FFC) and flexible printed circuits (FPC) with a thickness of 0.30mm or 0.33mm.

Positions: 22
Pitch: 0.020" (0.50mm)
Voltage Rating: 50V
Locking: Slide lock
Solder Retention: Yes
Contact Finish: Tin
Current Rating: 0.5A
Housing Material: Liquid crystal polymer (LCP), glass filled, and halogen-free with a UL94 V-0 flammability rating
Actuator Material: Polyphenylene sulfide (PPS), glass filled, and halogen-free
Mounting: Surface mountable
Height Above Board: 0.071" (1.80mm)
Mating Cycle: 20
Operating Temperature: -55°C to 105°C
