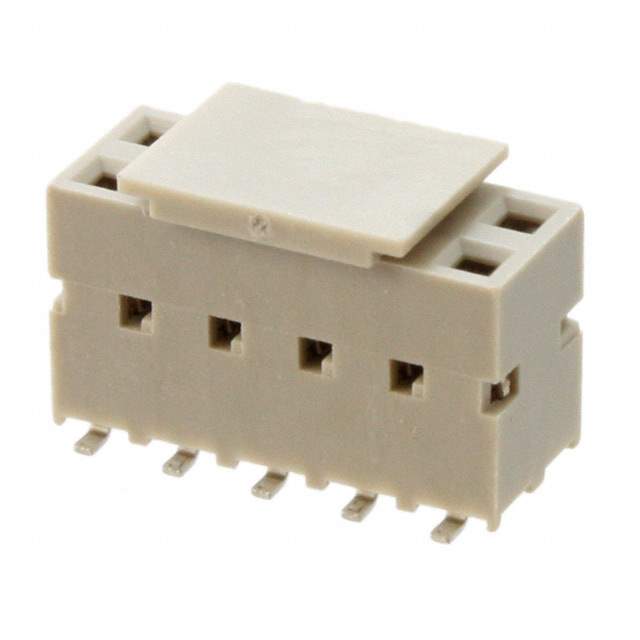

Same model may have multiple batches, images only for reference.

89898-305ALF

Name: 89898-305ALF
Brand: Amphenol FCI
SKU: 809804
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	89898-305ALF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	CONN RCPT 10POS 0.1 GOLD SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Amphenol ICC (FCI)
Packaging	Reel
Connector Type	Receptacle, Bottom or Top Entry
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Insulation Color	Gray
Insulation Height	0.275" (6.99mm)
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	10.81mm
Features	Pick and Place
Applications	Automotive, General Purpose, Industrial, Telecommunications
Insulation Material	Thermoplastic, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	78.7μin (2.00μm)
Manufacturer Pack Quantity	650
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809807-89898-305ALF
Ultra Librarian 3D Model	Ultra Librarian 89898-305ALF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) receptacle connector is a high-quality electronic component designed for use in various applications. Amphenol ICC (FCI)

Positions: 10
Pick and Place: Yes
Entry Configuration: Bottom or Top
Contact Type: Female Socket
Positions Loaded: All
Flammability Rating: UL94 V-0
Housing Material: Thermoplastic Glass-Filled
