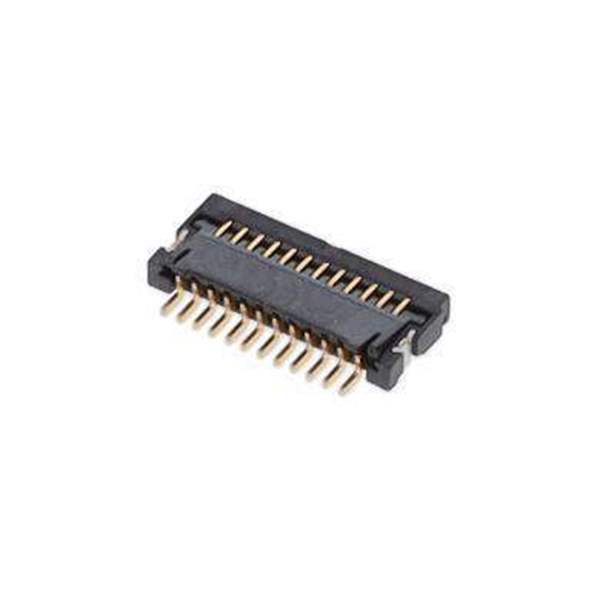

59453-121110EDHLF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

59453-121110EDHLF

Part No 59453-121110EDHLF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 12POS 0.5MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Win Source Part Number WS1209679-59453-121110EDHLF
Ultra Librarian 3D Model Ultra Librarian 59453-121110EDHLF CAD Model

Description

12 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
