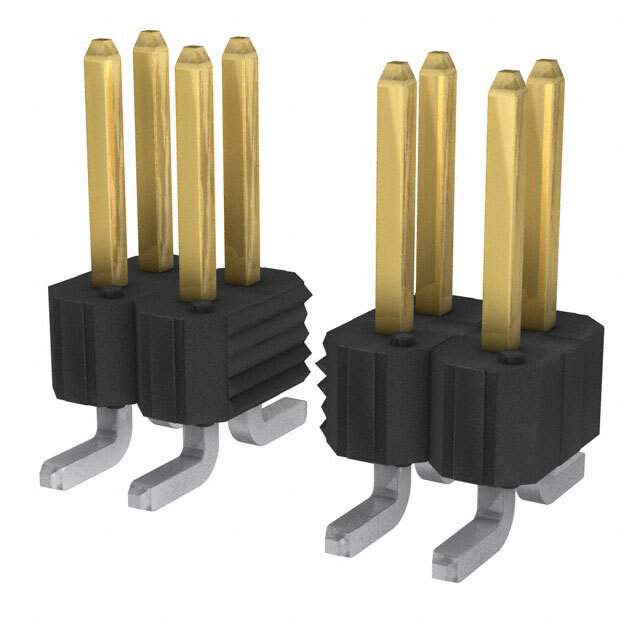

54202-S0807ALF

Name: 54202-S0807ALF
Brand: Amphenol FCI
SKU: 420433
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	54202-S0807ALF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	HEADER BERGSTIK SMT
Datasheet	54202-S0807ALF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Amphenol FCI
Packaging	Reel - TR
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT
Contact Finish Thickness - Mating	15μin (0.38μm)
Contact Finish - Post	Tin
Features	Pick and Place
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	100μin (2.54μm)
Win Source Part Number	1006084-54202-S0807ALF
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 54202-S0807ALF CAD Model

Alternative Products

Description

The Amphenol FCI header is a 14-position connector type with a pitch of 2.54mm.

Positions: 14
Pitch: 2.54mm
Contact Type: Male Pin
Mounting Type: Surface Mountable
Contact Finish: Gold or Gold, GXT
Contact Finish Thickness (Mating): 15μin (0.38μm)
Contact Finish Thickness (Post): Tin, 100μin (2.54μm)
Manufacturer: Amphenol FCI
Win Source Part Number: 1006084-54202-S0807ALF
