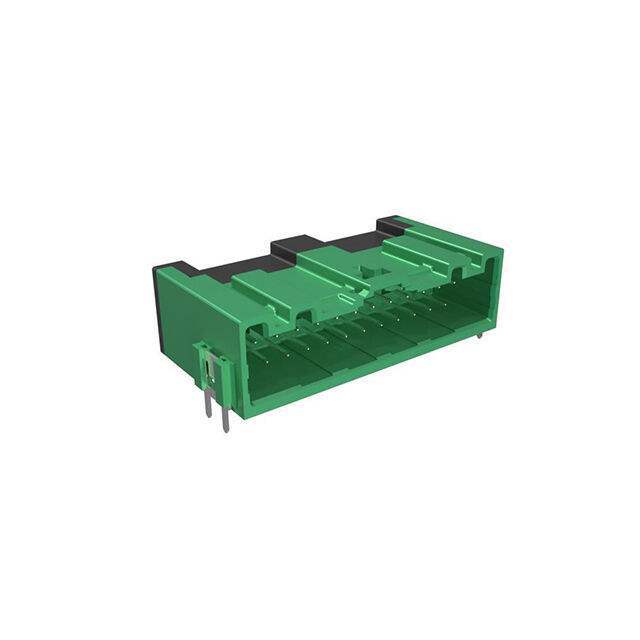

10166409-F24210BLF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10166409-F24210BLF

Part No 10166409-F24210BLF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description FLEXLOCK PITCH 2.54MM RA-HEADER
Datasheet
10166409-F24210BLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Packaging Tape & Reel (TR)
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian 10166409-F24210BLF CAD Model

Description

FlexLock™ 2.54mm pitch is supporting in 10 to 36 positions double row with vertical and horizontal TH configurations, and in 4 position single row vertical and horizontal TH configurations.

FlexLock™ 3.20mm pitch is supporting in 10 to 26 positions double row with horizontal TH configuration.

● USCAR-T2V2, LV-214 S3 compliant

● Re-flow tin plated reduce mating force

● Position from 10 to 36 (2.54mm pitch, double row)

● Position from 4 to 15 (2.54mm pitch, single row)

● Position from 10 to 26 (3.20mm pitch, double row)

● Connector Position Assurance (CPA)
