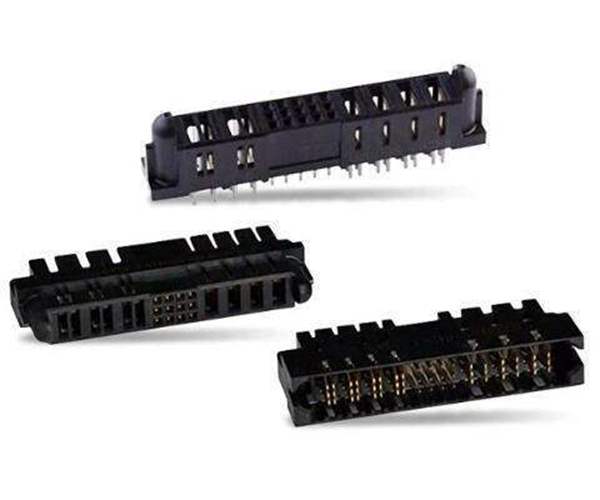

10130669-102LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10130669-102LF

Part No 10130669-102LF
Manufacturer Amphenol FCI
Catalog Backplane Connectors
Description 4P VS2 VR 10I 2MM SMPF
Datasheet
10130669-102LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324439-10130669-102LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Backplane Connectors > Specialized
Packaging Tray
Part Status Active
Connector Usage Backplane
Connector Type Receptacle, Female Sockets
Number of Positions 120
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 12
Ultra Librarian 3D Model Ultra Librarian 10130669-102LF CAD Model

Description

FEATURES

• Provides a migration path to 20Gb/s per differential pair

• Shieldless design with closely coupled pairs

• Backward mateable to existing VS and VS2 designs

• 3, 4 and 5 pair backplane and coplanar versions are available

• Available with 0.5mm or 0.4mm compliant pins

• Hard metric design practice
