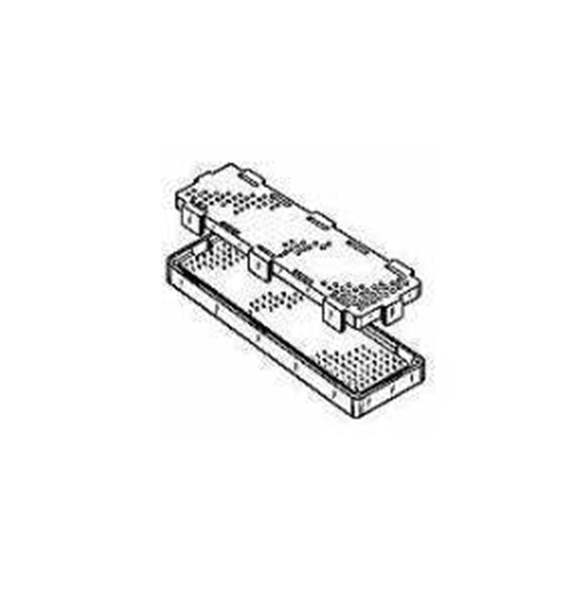

10122850-091LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10122850-091LF

Part No 10122850-091LF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description CONN ARRAY RCPT 320POS SMD GOLD
Datasheet
10122850-091LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324394-10122850-091LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Rectangular Connectors > Arrays, Edge Type, Mezzanine (Board to Board)
Packaging Tape & Reel (TR)
Part Status Active
Connector Type Array, Female Sockets
Number of Positions 320
Pitch 0.020" (0.50mm)
Number of Rows 10
Mounting Type Surface Mount
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian 10122850-091LF CAD Model

Description

320 Position Connector Array, Female Sockets Surface Mount Gold
