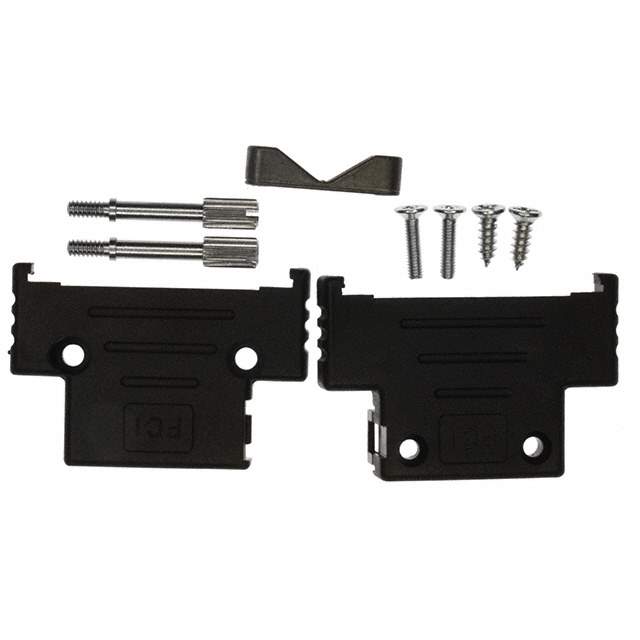

10070163-01LF Real Image
Same model may have multiple batches, images only for reference.

10070163-01LF

Part No 10070163-01LF
Manufacturer Amphenol FCI
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description BACKSHELL DB15 STR PLASTIC BLACK
Datasheet
10070163-01LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Series MicroTCA
Accessory Type Two Piece Backshell
Number of Positions 15
Cable Exit 180°
Shielding Unshielded
Material Thermoplastic
Hardware Assembly Hardware, Strain Relief
Features Mating Screws 4-40
Color Black
Win Source Part Number 760539-10070163-01LF
Popularity Medium
Supply and Demand Status Limited
Family Name 10070163
Introduction Date December 29, 2007
ECCN EAR99
Country of Origin India
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 10070163-01LF CAD Model

Description

The Amphenol FCI 760539-10070163-01LF is a two-piece backshell accessory type connector.

  • Series: MicroTCA
  • Positions: 15
  • Shielding: Unshielded
  • Color: Black
  • Mating Screws: 4-40
  • Material: Thermoplastic
  • Plating: No Plating
  • Cable Exit: 180 degrees
  • Applications: Assembly Hardware, Strain Relief
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2025
  • ECCN: EAR99
  • Manufactured In: India
