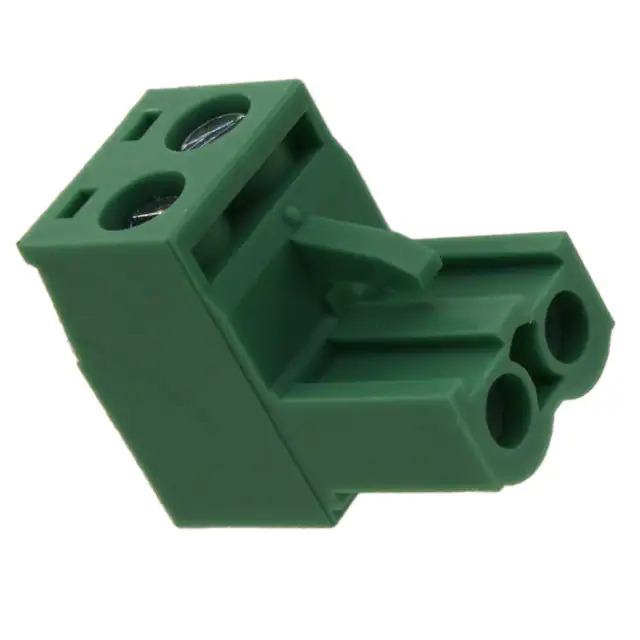

Same model may have multiple batches, images only for reference.

TJ0251530000G

Name: TJ0251530000G
Brand: Amphenol Anytek
SKU: 1364612
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TJ0251530000G
Manufacturer	Amphenol Anytek
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 2POS STR 5.08MM / 2 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Amphenol Anytek
Series	01-508
Package	Bulk
Product Status	Active
Type	Plug, Female Sockets
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Current - IEC	-
Current - UL	12 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-24 AWG
Wire Gauge or Range - mm²	1-2.5mm²
Color	Green
Temperature Range - Operating	-40°C ~ 115°C
Contact Mating Finish	Tin
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	M3
Torque - Screw	0.56 Nm (5.0 Lb-In)
Wire Strip Length	7-8mm
Contact Material	Copper Alloy
Housing Material	Thermoplastic Resin
Contact Tail Length	-
Insulation Height	0.594" (15.09mm)
Base Product Number	TJ02
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364612-TJ0251530000G
Ultra Librarian 3D Model	Ultra Librarian TJ0251530000G CAD Model

Alternative Products

Description

The Amphenol Anytek 01-508 series is a plug with female sockets terminal block header.

Temperature Range: -40°C to 115°C
Features: Retention Latches on Non-Wire Side
Base Product Number: TJ02
Mounting: Free Hanging (In-Line)
Pitch: 0.200" (5.08mm)
Wire Gauge: 12-24 AWG
Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Mating Finish: Tin
Wire Entry: 180°
Current: 12A
Voltage: 300V
