Same model may have multiple batches, images only for reference.

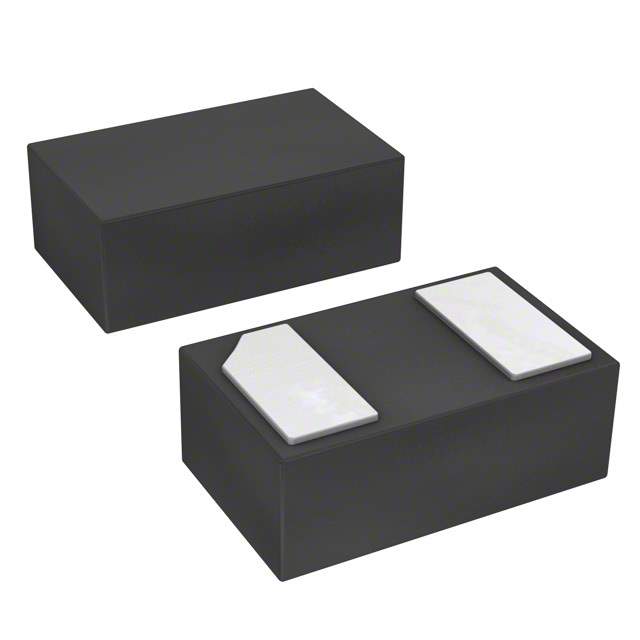

AOZ8231ADI-02 Real Image
Same model may have multiple batches, images only for reference.

AOZ8231ADI-02

Part No AOZ8231ADI-02
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description TVS DIODE 2.5VWM 12.5VC DFN
Datasheet
AOZ8231ADI-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 2.5V (Max)
Minimum Breakdown Voltage 3V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 6A (8/20μs)
Applications General Purpose
Capacitance @ Frequency 5.5pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 2-DFN (1x0.6)
Win Source Part Number 1017419-AOZ8231ADI-02
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOZ8231ADI-02 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AOZ8231ADI-02 is a Zener diode designed for use in a variety of applications, including general purpose circuit protection.

  • Stand-off Voltage: 2.5V (Max)
  • Minimum Breakdown Voltage: 3V
  • Maximum Clamping Voltage: 12.5V
  • Peak Pulse Current: 6A (8/20μs)
  • Package: 2-DFN (1x0.6)
  • Mounting: Surface-mounting
  • Temperature Range: -40°C to 125°C (TJ)
