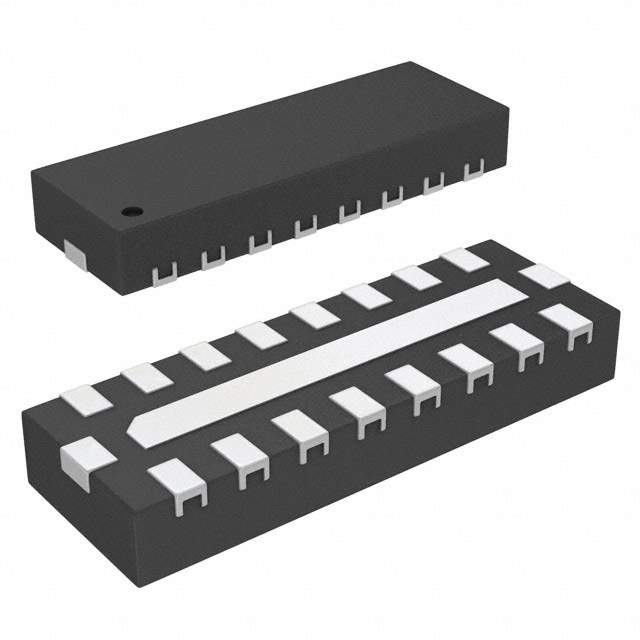

AOZ8170DT Real Image
Same model may have multiple batches, images only for reference.

AOZ8170DT

Part No AOZ8170DT
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/8PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 25 Weeks
Features RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100Ohms, C = 8pF 20 mA 16-UFDFN Exposed Pad
Manufacturer Alpha & Omega Semiconductor Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 16-UFDFN Exposed Pad
Family Name AOZ8170
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 861237-AOZ8170DT
Ultra Librarian 3D Model Ultra Librarian AOZ8170DT CAD Model

Description

The Alpha & Omega Semiconductor Inc. AOZ8170DT is a low pass 8 channel RC (Pi) EMI filter that is designed to operate in a wide temperature range of -40°C to 85°C.

  • Component: EMI Filter
  • Channels: 8 Channel
  • Type: Low Pass RC (Pi)
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Alpha & Omega Semiconductor Inc.
  • Win Source Part Number: 861237-AOZ8170DT
  • Mounting: Surface Mountable
  • Package: 16-UFDFN exposed pad
  • Packaging: Reel-TR
  • Estimated Production Lead Time: 25 weeks
  • Supply and Demand Status: Limited
  • Quantity per Package: 5000
