Same model may have multiple batches, images only for reference.

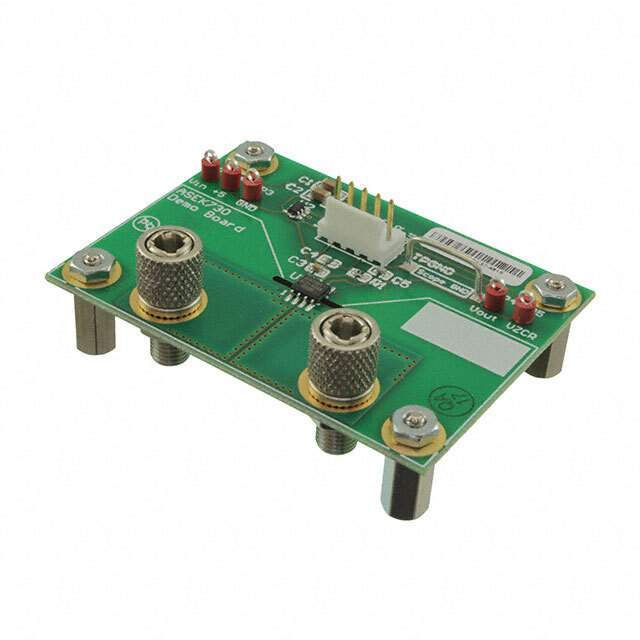

ASEK730KLC-40AB-T-DK Real Image
Same model may have multiple batches, images only for reference.

ASEK730KLC-40AB-T-DK

Part No ASEK730KLC-40AB-T-DK
Manufacturer Allegro MicroSystems, LLC
Catalog Evaluation Boards - Sensors
Description EVAL BOARD FOR ACS730 / ACS730 - Current Sensor Sensor Evaluation Board
Datasheet
ASEK730KLC-40AB-T-DK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Sensors
Mfr Allegro MicroSystems
Package Bulk
Sensor Type Current Sensor
Sensing Range 40A
Interface Analog
Sensitivity 50mV/A
Voltage - Supply 4.5V ~ 5.5V
Supplied Contents Board(s)
Utilized IC / Part ACS730
Base Product Number ASEK730
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1347195-ASEK730KLC-40AB-T-DK
Ultra Librarian 3D Model Ultra Librarian ASEK730KLC-40AB-T-DK CAD Model

Description

The ASEK730KLC-40AB-T-DK is a current sensor development board from Allegro MicroSystems. It uses the ACS730 IC and has a sensing range of 40A with a sensitivity of 50mV/A.

  • Sensing Range: 40A
  • Sensitivity: 50mV/A
  • Voltage Range: 4.5V to 5.5V
  • Packaging: bulk
  • Interface: analog
  • Applications: current sensing
