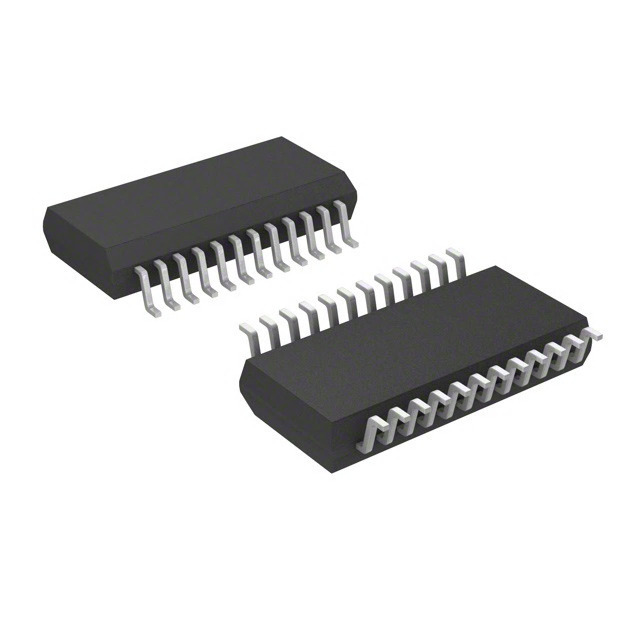

ACS709LLFTR-6BB-T Allegro MicroSystems, LLC
Same model may have multiple batches, images only for reference.

ACS709LLFTR-6BB-T

Part No ACS709LLFTR-6BB-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Sense Transformers
Description SENSOR CURRENT HALL 6A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Allegro MicroSystems
Packaging Reel
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 6.5A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 90mV/A
Frequency DC ~ 120kHz
Linearity ±0.25%
Accuracy ±2%
Supply Voltage (V) 3V ~ 5.5V
Response Time 4μs
Current - Supply (Maximum) 14.5mA
Temperature Range - Operating -40°C ~ 150°C
Polarization Bidirectional
Mounting Style SMD
Manufacturer Package 24-SSOP
Supplier Device Package 24-QSOP
Manufacturer Pack Quantity 2,500
MSL Level 2 (1 Year)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809297-ACS709LLFTR-6BB-T
Ultra Librarian 3D Model Ultra Librarian ACS709LLFTR-6BB-T CAD Model

Description

The ACS709LLFTR-6BB-T is a ratiometric, voltage output, bidirectional, Hall effect sensor IC manufactured by Allegro MicroSystems.

  • Sensitivity: 90mV/A
  • Current Sensing: AC/DC, up to 6.5A
  • Linearity: ±0.25%
  • Accuracy: ±2%
  • Supply Voltage: 3V to 5.5V
  • Maximum Supply Current: 14.5mA
  • Response Time: 4μs
  • Frequency Range: DC to 120kHz
  • Package: 24-QSOP
  • Temperature Range: -40°C to 150°C
