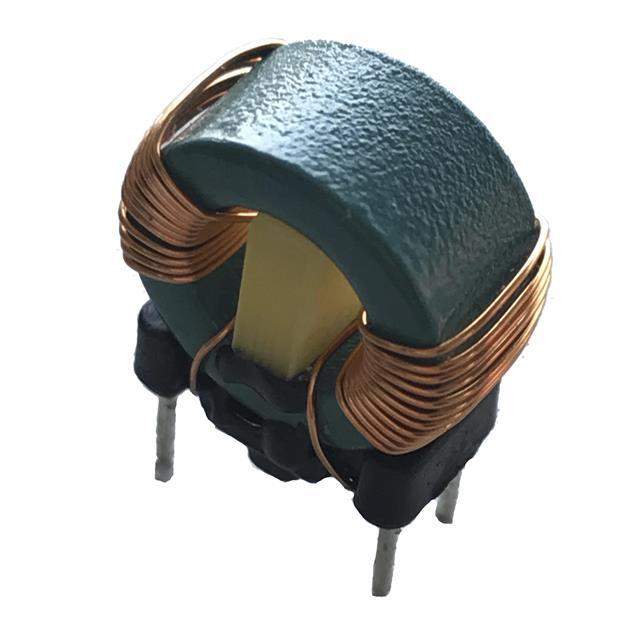

AMFC22-1NZ-360 Real Image
Same model may have multiple batches, images only for reference.

AMFC22-1NZ-360

Part No AMFC22-1NZ-360
Manufacturer AIMTEC
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 1A / 2.2 mH 2 Line Common Mode Choke Through Hole 1A DCR 90mOhm (Typ)
Datasheet
AMFC22-1NZ-360 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr aimtec
Series AMFC-NZ
Package Box
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.2 mH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 90mOhm (Typ)
Voltage Rating - DC 2000V (2kV)
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.669" L x 0.378" W (17.00mm x 9.60mm)
Height (Max) 0.709" (18.00mm)
Package / Case Vertical, 4 PC Pin
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8504.40.9580
Other Names 2721-AMFC22-1NZ-360
Win Source Part Number 1162185-AMFC22-1NZ-360
Ultra Librarian 3D Model Ultra Librarian AMFC22-1NZ-360 CAD Model

Description

The AMFC22-1NZ-360 is a common mode choke filter manufactured by Aimtec.

  • Mounting Type: Through-hole
  • Package: Vertical, 4 PC pin
  • Filter Type: Power line
  • Voltage Rating (DC): 2000V (2kV)
  • Voltage Rating (AC): No rating
  • Height: 0.709" (18.00mm)
  • Dimensions: 0.669" L x 0.378" W (17.00mm x 9.60mm)
  • Inductance @ Frequency: 2.2 mH @ 1 kHz
  • DC Resistance (DCR): 90mOhm (Typ)
  • Temperature Range: -25°C ~ 105°C
  • RoHS Compliance: RoHS non-compliant
