Same model may have multiple batches, images only for reference.

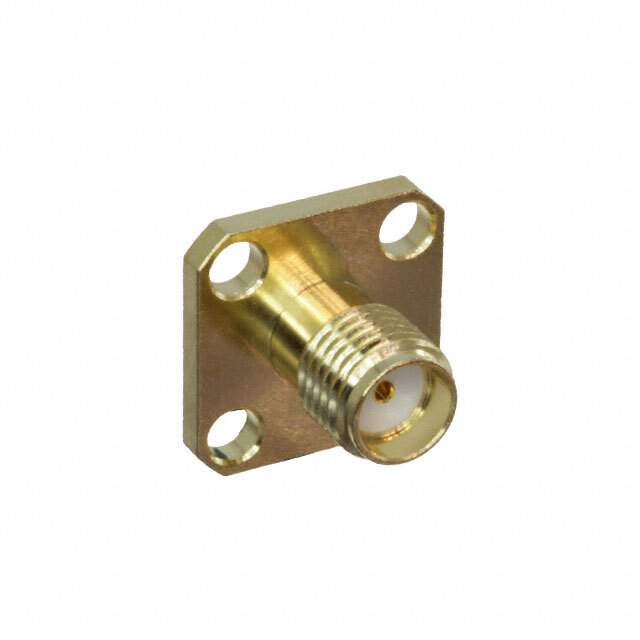

RF2-155-T-00-50-G Real Image
Same model may have multiple batches, images only for reference.

RF2-155-T-00-50-G

Part No RF2-155-T-00-50-G
Manufacturer Adam Technologies, Inc.
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK PCB 50 OHM SLDR / SMA Connector Receptacle, Male Pin 50Ohm Panel Mount, Through Hole Solder
Datasheet
RF2-155-T-00-50-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Adam Tech
Series RF
Package Bulk
Connector Style SMA
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount, Through Hole
Mounting Feature Flange
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Housing Color White
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 335 V
Base Product Number RF2-155
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Other Names 2057-RF2-155-T-00-50-G
Standard Package 100
Win Source Part Number 1125389-RF2-155-T-00-50-G
Ultra Librarian 3D Model Ultra Librarian RF2-155-T-00-50-G CAD Model

Description

The Adam Tech RF2-155-T-00-50-G is a connector designed for use in coaxial connectors (RF).

  • Manufacturer: Adam Tech
  • Application: Coaxial Connectors (RF)
  • Connector Type: Receptacle
  • Pin Gender: Male
  • Fastening Type: Threaded
  • SMA Voltage Rating: 335V
  • Fake Products: High Threat
  • REACH: Unaffected
  • Temperature Range: -65°C ~ 165°C
