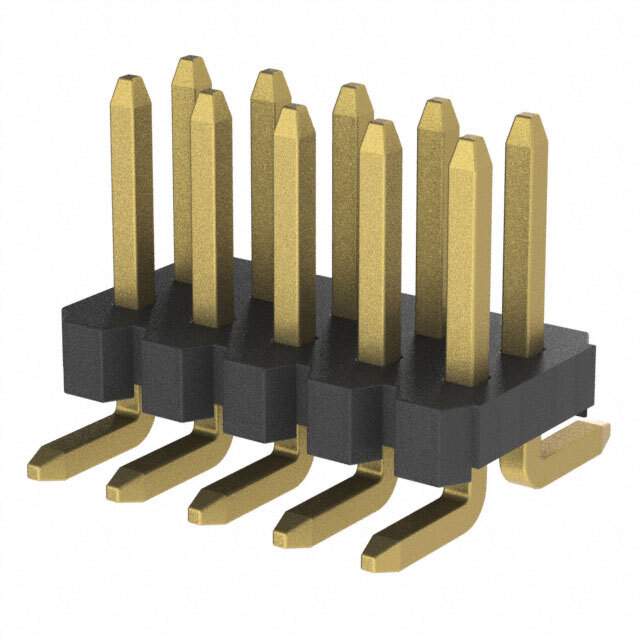

Same model may have multiple batches, images only for reference.

HPH2-A-10-UA-SMT

Name: HPH2-A-10-UA-SMT
Brand: Adam Technologies, Inc.
SKU: 1204281
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HPH2-A-10-UA-SMT
Manufacturer	Adam Technologies, Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 1.27MM / Connector Header Surface Mount 10 position 0.050" (1.27mm)
Datasheet	HPH2-A-10-UA-SMT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Adam Tech
Series	HPH2
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.118" (3.00mm)
Insulation Height	0.039" (1.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Thermoplastic, Glass Filled
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	250VAC
Contact Finish Thickness - Post	Flash
Base Product Number	HPH2-A
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2057-HPH2-A-10-UA-SMT
Standard Package	1,000
Win Source Part Number	1204281-HPH2-A-10-UA-SMT
Ultra Librarian 3D Model	Ultra Librarian HPH2-A-10-UA-SMT CAD Model

Alternative Products

Description

The Adam Tech HPH2-A-10-UA-SMT is a male pin header connector with a pitch of 0.050 inches. It has a current rating of 3A and operates in the temperature range of -55°C to 105°C. This connector is suitable for board-to-board applications and is available in a bulk package.
