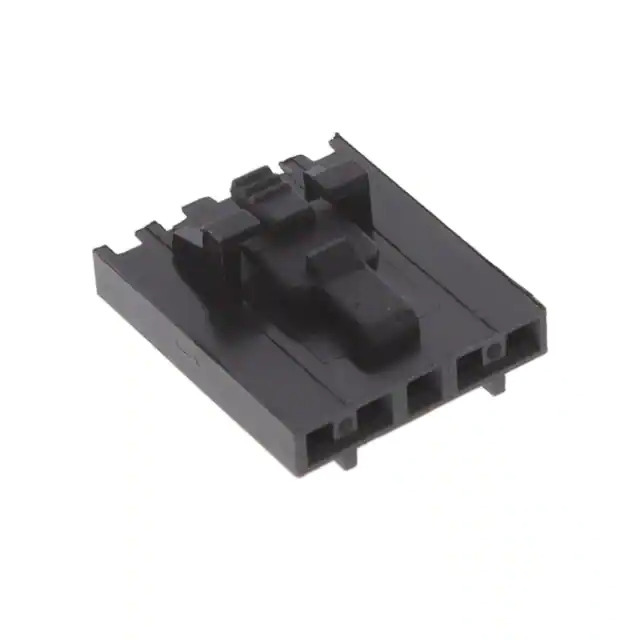

Same model may have multiple batches, images only for reference.

CDH-05

Name: CDH-05
Brand: Adam Technologies, Inc.
SKU: 1376417
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	CDH-05
Manufacturer	Adam Technologies, Inc.
Catalog	Rectangular Connectors
Description	CONN PLUG HSG 5POS 2.54MM
Datasheet	CDH-05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	Adam Tech
Series	CDH
Package	Bag
Product Status	Active
Connector Type	Plug
Contact Type	Female Socket
Number of Positions	5
Pitch	0.100" (2.54mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Black
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	CDH
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1376417-CDH-05
Ultra Librarian 3D Model	Ultra Librarian CDH-05 CAD Model

Alternative Products

Description

The CDH-05 is a rectangular connector housing manufactured by Adam Tech.

Application: Connectors and Interconnects
Operating Temperature: -25°C to 85°C
Mounting Type: Free Hanging (In-Line)
Fastening Type: Latch Lock
Number of Positions: 5
Number of Rows: 1
Pitch: 0.100" (2.54mm)
Connector Type: Plug
Contact Gender: Female Socket
Contacts Included: No
Color: Black
Package: Bag
Status: Active
REACH: Unaffected
HTSUS Code: 8538.90.6000
ECCN: EAR99
