Same model may have multiple batches, images only for reference.

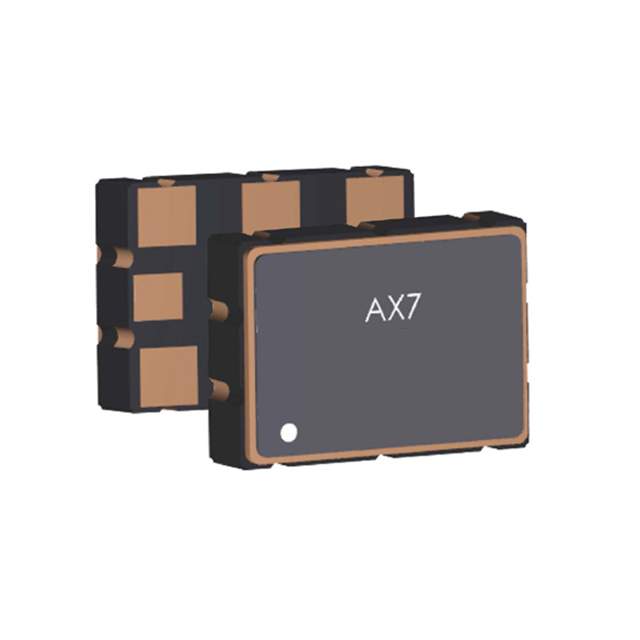

AX7PBF1-819.2000T Real Image
Same model may have multiple batches, images only for reference.

AX7PBF1-819.2000T

Part No AX7PBF1-819.2000T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 819.2000MHZ LVPECL / 819.2 MHz XO (Standard) LVPECL Oscillator 2.5V Enable/Disable 8-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ClearClock™ AX7
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 819.2 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 2.5V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 94mA
Mounting SMD (SMT)
Package / Case 8-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.075" (1.90mm)
Current - Supply (Disable) (Max) 86mA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 250
Win Source Part Number 1163183-AX7PBF1-819.2000T
Ultra Librarian 3D Model Ultra Librarian AX7PBF1-819.2000T CAD Model

Description

This electronic component is a ClearClock™ AX7 series XO (Standard) oscillator manufactured by Abracon LLC.

  • Win Source Part Number: 1163183-AX7PBF1-819.2000T
  • Package: tape & reel (TR)
  • Height: 0.075 inches (1.90mm) maximum
  • Standard Package: 250 units
  • Mounting: surface mount technology (SMT)
  • Frequency: 819.2 MHz
  • Function: enable/disable
  • Output: LVPECL
  • Frequency Stability: ±25ppm
  • Current Supply Max: 94mA
  • Current Supply Disabled Max: 86mA
  • Voltage Supply: 2.5V
  • Package/Case: 8-SMD, no lead
  • Operating Temperature: -40°C to 85°C
  • REACH: unaffected
  • ECCN: EAR99
  • Resonator Base: crystal
  • Absolute Pull Range: none
  • HTSUS: 8542.39.0001
