Same model may have multiple batches, images only for reference.

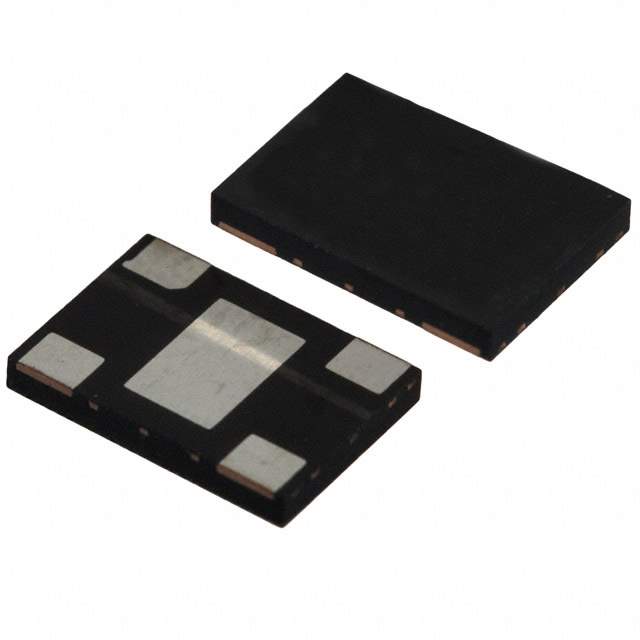

ASVMB-24.000MHZ-XY-T Real Image
Same model may have multiple batches, images only for reference.

ASVMB-24.000MHZ-XY-T

Part No ASVMB-24.000MHZ-XY-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 24.0000MHZ LVCMOS / 24 MHz XO (Standard) LVCMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead Exposed Pad
Datasheet
ASVMB-24.000MHZ-XY-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASVMB, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 24 MHz
Function Standby (Power Down)
Output LVCMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±10ppm
Temperature Range - Operating -40°C ~ 105°C
Current - Supply (Max) 16mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead Exposed Pad
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338277-ASVMB-24.000MHZ-XY-T
Ultra Librarian 3D Model Ultra Librarian ASVMB-24.000MHZ-XY-T CAD Model

Description

The ASVMB series XO (standard) crystal oscillator is a high-quality electronic component designed for use in various applications such as oscillators, resonators, and crystals.

  • Series: ASVMB Pure Silicon™
  • Mounting Type: Surface Mount
  • Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Seated Height: 0.035" (0.90mm)
  • Frequency: 24 MHz
  • Frequency Stability: ±10ppm
  • Output: LVCMOS
  • Voltage Supply: 1.8V ~ 3.3V
  • Function: Standby (Power Down)
  • Maximum Current Supply: 16mA
