Same model may have multiple batches, images only for reference.

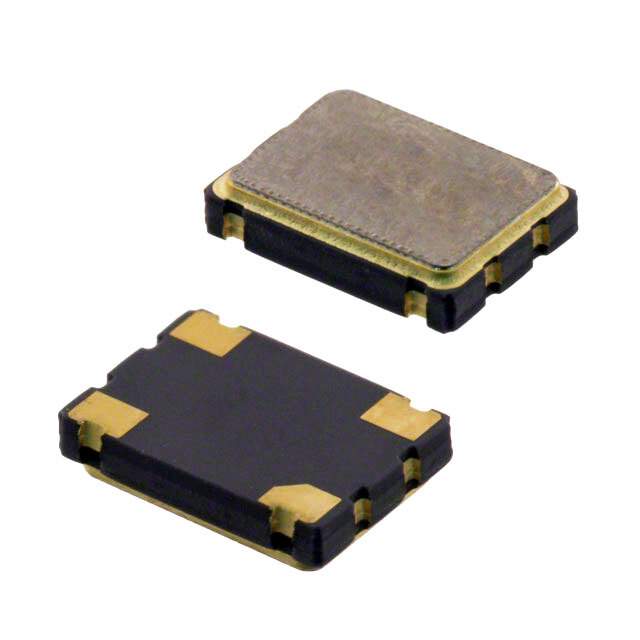

ASV-10.000MHZ-E-T Real Image
Same model may have multiple batches, images only for reference.

ASV-10.000MHZ-E-T

Part No ASV-10.000MHZ-E-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 10.0000MHZ HCMOS SMD / 10 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ASV-10.000MHZ-E-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASV
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 10 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 10mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.200" W (7.00mm x 5.08mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1337141-ASV-10.000MHZ-E-T
Ultra Librarian 3D Model Ultra Librarian ASV-10.000MHZ-E-T CAD Model

Description

The ASV-10.000MHZ-E-T is a crystal oscillator manufactured by Abracon LLC.

  • Series: ASV
  • Type: Standard XO
  • Package: Tape and Reel
  • Length: 0.276 inches
  • Width: 0.200 inches
  • Height: 0.071 inches
  • Frequency: 10 MHz
  • Output: HCMOS
  • Frequency Stability: ±100ppm
  • Voltage Supply: 3.3V
  • Current Supply (Max): 10mA
