Same model may have multiple batches, images only for reference.

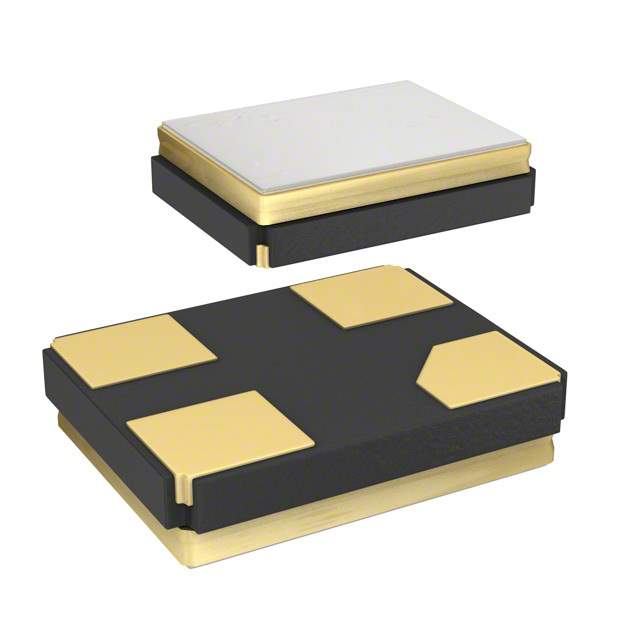

ASTX-H12-20.000MHZ-T Real Image
Same model may have multiple batches, images only for reference.

ASTX-H12-20.000MHZ-T

Part No ASTX-H12-20.000MHZ-T
Manufacturer Abracon LLC
Catalog Oscillators
Datasheet
ASTX-H12-20.000MHZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASTX-H12
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 20 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±2.5ppm
Temperature Range - Operating -30°C ~ 75°C
Current - Supply (Max) 4.8mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.037" (0.95mm)
Other Names ASTXH1220000MHZT,535-12050-2,535-12050-1,ASTX-H12-20.000MHZ-T,535-12050-6
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1284958-ASTX-H12-20.000MHZ-T
Ultra Librarian 3D Model Ultra Librarian ASTX-H12-20.000MHZ-T CAD Model

Description

The Abracon LLC 1284958-ASTX-H12-20.000MHZ-T oscillator is a tape and reel packaged, surface-mount device (SMD) oscillator that has a frequency of 20 MHz.

  • Type: Temperature-compensated oscillator (TCXO)
  • Height: 0.037 inches
  • Current Supply: 4.8mA
  • Voltage Supply: 3.3V
  • Frequency Stability: ±2.5ppm
  • Output: HCMOS
  • Temperature Range: -30°C to 75°C
  • ROHS Compliant: Yes
  • Ideal for: Use in electronic devices that require a stable and accurate frequency signal.
