Same model may have multiple batches, images only for reference.

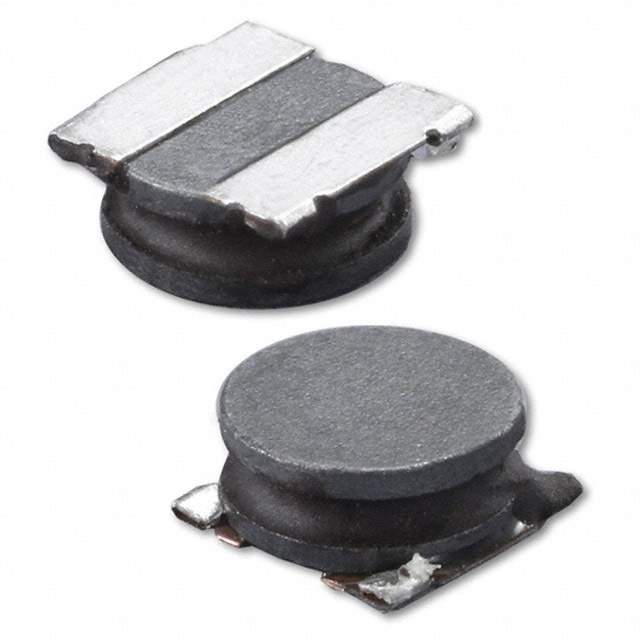

ASPI-0418FS-2R2M-T3 Real Image
Same model may have multiple batches, images only for reference.

ASPI-0418FS-2R2M-T3

Part No ASPI-0418FS-2R2M-T3
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.9A 37 MOHM SMD / 2.2 µH Shielded Drum Core, Wirewound Inductor 2.2 A 50mOhm Max Nonstandard
Datasheet
ASPI-0418FS-2R2M-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ASPI-0418FS
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 3A
Shielding Shielded
DC Resistance (DCR) 50mOhm Max
Frequency - Self Resonant 60MHz
Temperature Range - Operating -25°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.071" (1.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names ASPI-0418FS-2R2M-T2,ASPI-0418FS-2R2M-T4,ASPI0418FS2R2MT3,535-10759-6,535-10759-1,535-10759-2
Standard Package 3,000
Win Source Part Number 961023-ASPI-0418FS-2R2M-T3
Ultra Librarian 3D Model Ultra Librarian ASPI-0418FS-2R2M-T3 CAD Model

Description

The ASPI-0418FS-2R2M-T3 is a shielded fixed inductor that is ideal for use in a variety of applications, including EMI and RFI suppression.

  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • DC Resistance: 50mOhm Max
  • Current Rating: 2.2 A
  • Temperature Range: -25°C to 120°C
  • Package: Tape and reel
  • Type: Drum core, wirewound inductor
  • Material: Ferrite
  • Frequency of self-resonant: 60 MHz
  • Height: 0.071" (1.80mm) when seated
  • Description: This inductor is a reliable and efficient solution for EMI and RFI suppression in a variety of applications.
