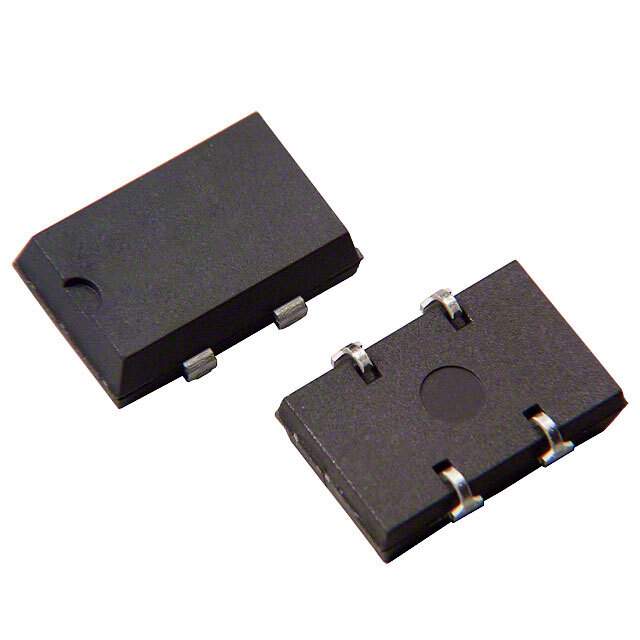

ASM-30.000MHZ-ET Real Image
Same model may have multiple batches, images only for reference.

ASM-30.000MHZ-ET

Part No ASM-30.000MHZ-ET
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 30.0000MHZ HCMOS TTL / 30 MHz XO (Standard) HCMOS, TTL Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASM
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 30 MHz
Function Enable/Disable
Output HCMOS, TTL
Voltage - Supply 5V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 40mA
Mounting Type Surface Mount
Package / Case 4-SOJ, 5.08mm pitch
Size / Dimension 0.551" L x 0.352" W (14.00mm x 8.95mm)
Height - Seated (Max) 0.185" (4.70mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1340136-ASM-30.000MHZ-ET
Ultra Librarian 3D Model Ultra Librarian ASM-30.000MHZ-ET CAD Model

Description

The 1340136-ASM-30.000MHZ-ET is an oscillator component from the ASM series, designed for use in a variety of applications.

  • Frequency: 30MHz
  • Output: HCMOS and TTL
  • Frequency Stability: ±100ppm
  • Voltage: 5V
  • Maximum Supply Current: 40mA
  • Package / Case: 4-SOJ, 5.08mm pitch
  • Mounting Type: Surface Mount
  • Operating Temperature: -20°C to 70°C
  • REACH: Not affected
  • Standard Package: 1,000
  • Status: Obsolete
