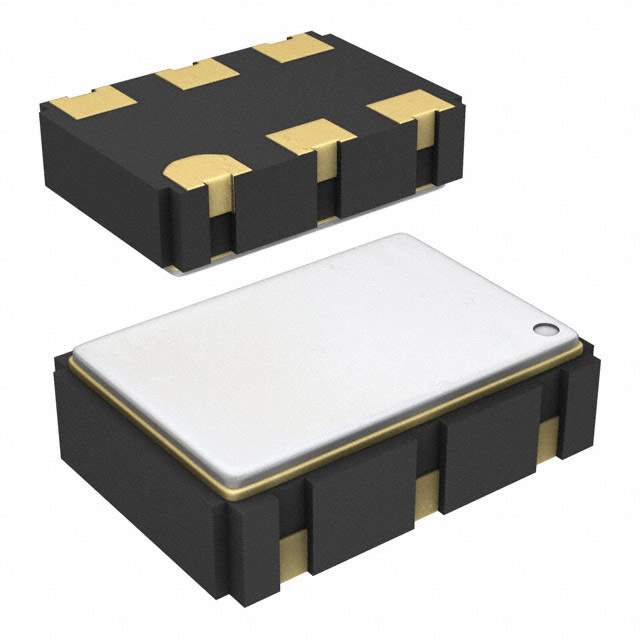

ASG-C-X-A-25.000MHZ-T Real Image
Same model may have multiple batches, images only for reference.

ASG-C-X-A-25.000MHZ-T

Part No ASG-C-X-A-25.000MHZ-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 25.0000MHZ LVCMOS / 25 MHz XO (Standard) LVCMOS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASG-C
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±35ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 45mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.075" (1.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1053888-ASG-C-X-A-25.000MHZ-T
Ultra Librarian 3D Model Ultra Librarian ASG-C-X-A-25.000MHZ-T CAD Model

Description

The ASG-C-X-A-25.000MHZ-T is a standard type oscillator with a 6-SMD, No Lead package.

  • Package: 6-SMD, No Lead
  • Frequency: 25 MHz
  • Frequency Stability: ±35ppm
  • Output: LVCMOS
  • Function: Enable/Disable
  • Height: 0.075 inches
  • Standard Package: 1,000 items
  • Mounting: SMD (SMT)
  • Current Supply (Max): 45mA
  • Voltage Supply: 3.3V
  • Operating Temperature: -40°C to 85°C
