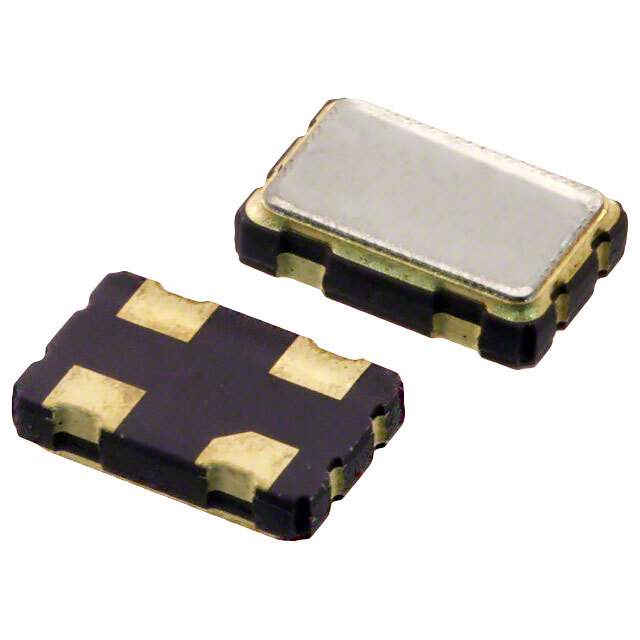

ASFL3-24.000MHZ-EK-T Real Image
Same model may have multiple batches, images only for reference.

ASFL3-24.000MHZ-EK-T

Part No ASFL3-24.000MHZ-EK-T
Manufacturer Abracon LLC
Catalog Oscillators
Description OSC XO 24.000MHZ CMOS SMD / Oscillator XO 24MHz ±30ppm 15pF CMOS 60% 1.8V 4-Pin SMD T/R
Datasheet
ASFL3-24.000MHZ-EK-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Series ASFL3
Packaging Reel package
Type XO (Standard)
Frequency 24MHz
Function Enable/Disable
Output CMOS
Operating Supply Voltage 1.8V
Frequency Stability ±30ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 8mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Maximum) 0.051" (1.30mm)
Win Source Part Number 778123-ASFL3-24.000MHZ-EK-T
Popularity Medium
Supply and Demand Status Limited
Family Name ASFL3
Introduction Date May 30, 2003
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ASFL3-24.000MHZ-EK-T CAD Model

Description

The ASFL3-24.000MHZ-EK-T is a crystal oscillator manufactured by Abracon LLC.

  • Series: ASFL3
  • Package: Reel
  • Type: XO (Standard)
  • Frequency: 24MHz
  • Frequency Stability: ±30ppm
  • Family: ASFL3
  • Category: Crystals, Oscillators, and Resonators
  • Maximum Supply Current: 8mA
  • Mounting Type: SMD
